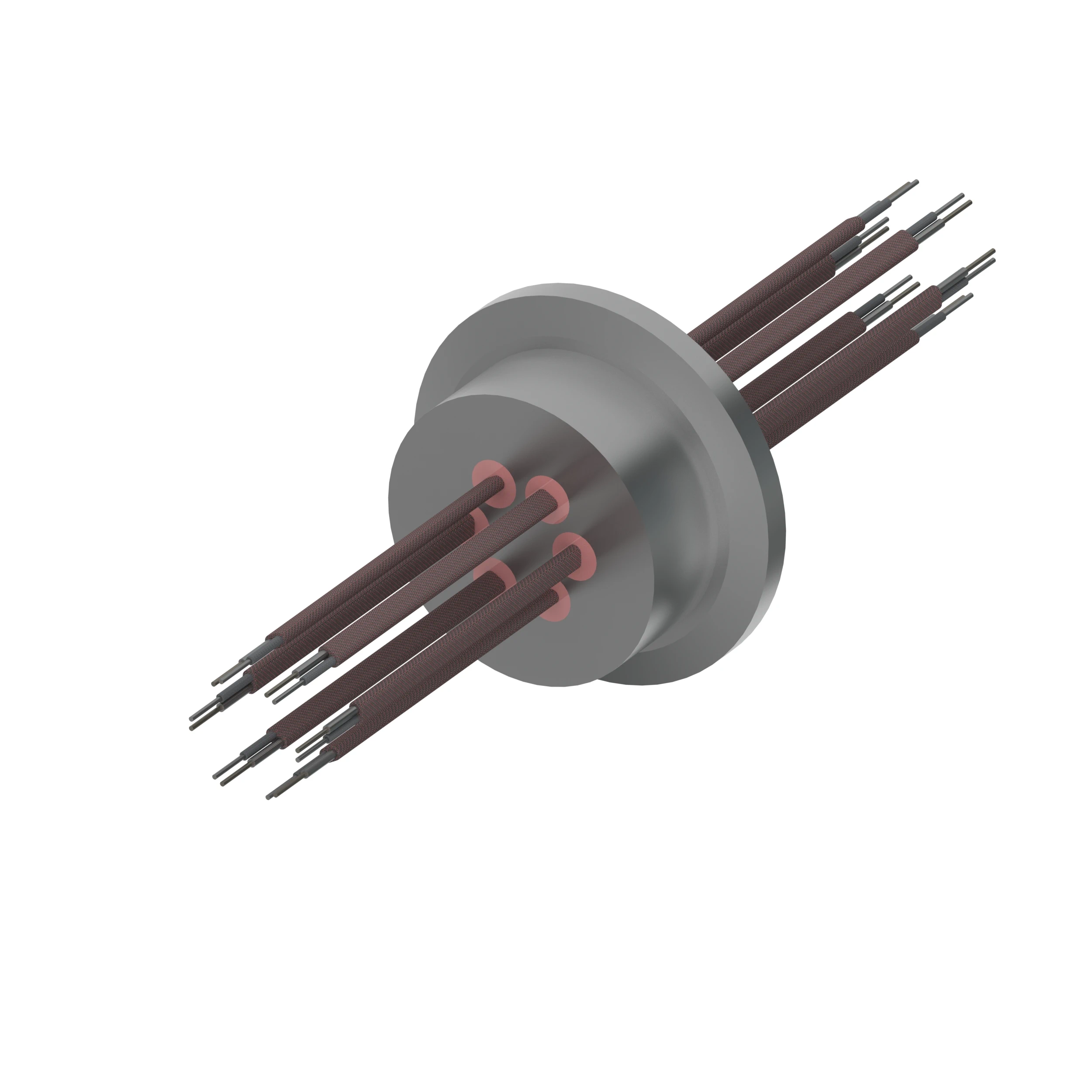

Vacuum-tight feedthrough with small flange
Vacuum feedthrough with small flange according to ISO 2861 for jacket and thermal lines. Up to 16 lines for vacuum systems. Configure now!
Scope of Application
Feed-throughs for up to 16 lines for connecting batches in vacuum systems. A small flange conforming to ISO 2861 serves as the process connection.
Variants
Specifications
| 28 | - | PP | - | XX | TT | FF | MM | - | L1 | - | L2 |
Show detailed specifications
| 28 | Implementation | ||||||||||
| PP | Process connection
| ||||||||||
| XX | Number of lines | ||||||||||
| TT | Thermocouple Type EN 60584-1 | ||||||||||
| FF | Mounting
| ||||||||||
| MM | Mounting
| ||||||||||
| L1 | Length of the line on the sealed side | ||||||||||
| L2 | Length of the cable (outer diameter) |
Example
| 28 | - | KF40 | - | 06 | 05 | MT020 | 02 | - | 0600 | - | 0400 |

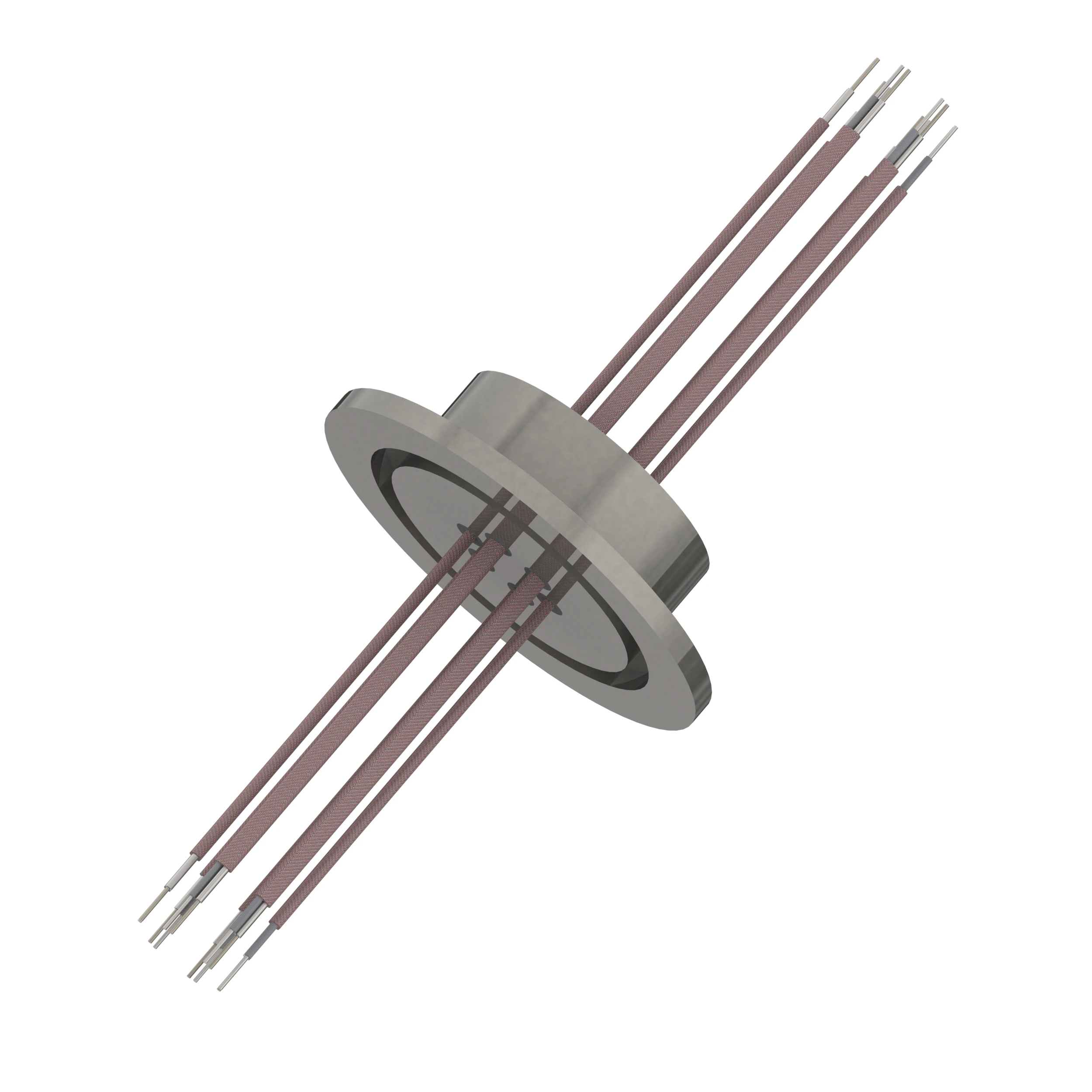

Vacuum-tight feed-through with ISO flange ISO 2861 DN40, 6 x Type N permanently installed jacket tubing Ø2.0, 600 length on the sealing side and 400 length on the outer side.
Drawings
In progress
Documents
In progress
