Vacuum-tight junction box with KF 40

Name: Vacuum-tight junction box with KF 40
Brand: thermo-control

Vacuum-tight cable feed-through in a fixed junction box with a small-flange process connection.

Scope of Application

Vacuum-tight cable feed-through in a fixed junction box with a small-flange process connection.

Specifications

The specification is structured as follows:

Specifications
28	-	KF40B	-	XX	TT	FF	01	-	L1	-	L2

Show detailed specifications

Implementation

Process connection

G34	G3/4" DIN 228 thread with lock nut
KF25	Small Flange SN25
KF40	Small Flange DN40
KF40B	Junction Box on KF40
FL80	ISO Flange EN 1092 DN80

Number of lines

Thermocouple Type EN 60584-1

Mounting

MT015	Sheathed cable, Ø 1.5 mm
MT020	Sheathed cable, Ø 2.0 mm
MT030	Sheathed cable, Ø3.0
TL050	Heat-conducting cable with 2 solid conductors, each Ø0.50 mm
AG050	Equipotential bonding conductor with 2 x Ø0.50 mm solid conductors

Mounting

01	Cable secured
02	Cable can be moved

Length of the line on the sealed side

Exterior Panels

MCS	Miniature Thermal Connector Plug
MCK	Miniature Thermal Connector (Male/Female)
MCS3P	Miniature Thermal Connector, 3-Pin Plug
MCK3P	Miniature Thermal Connector (Male/Female), 3-Pin
SCS	Standard Thermal Connector
SCK	Standard Thermal Connector (Male/Female)
SCS3P	Standard Thermal Connector, 3-Pin Plug
SCK3P	Standard Thermal Connector (Male/Female), 3-Pin

Example

KF40B

MT020

0600

SCS

Vacuum-tight feed-through with 6 standard thermal connectors in a junction box and a 600-length Type N sheathed cable (Ø2.0) on the sealed side.

Drawings

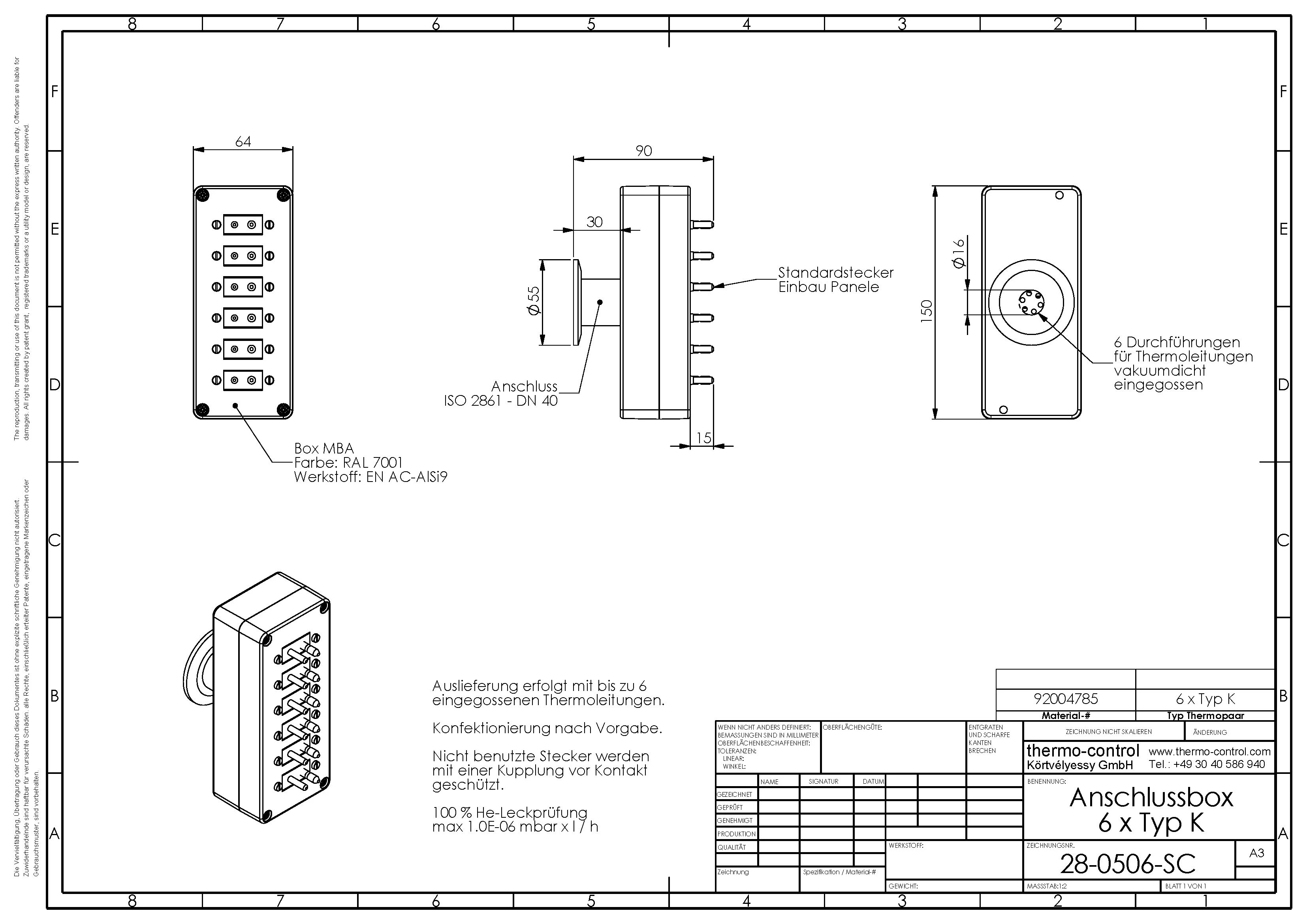

Vakuumdichte Anschlussbox mit 6 x Typ K Standard Thermostecker

PDF 126kB DXF 1MB STEP 3.8MB eDrawings 457kB CAD Paket 1.9MB
