Feedthroughs

Feedthroughs are an important component for many temperature measurements when the measured atmosphere needs to be protected.

If the sensors need to be changed frequently, such as for batch elements, feedthroughs with pre-assembled connectors are suitable.

thermo-control feedthroughs are custom-made and built to customer specifications. They have the following features:

  • Gas-tight / vacuum-tight design
  • Feedthrough with thermocouple cables or sheathed cables
  • Assembly with connector
  • Fixed or replaceable cables

Avaliable types

Inch Thread

Gas-tight feedthrough for 6 cables with G3/4 inch process thread

Small Flange

Vacuum-tight feedthrough with ISO 2861 small flange for up to 12 cables

Connection box

Vacuum-tight feedthrough as junction box with small flange process connection

ISO Flange

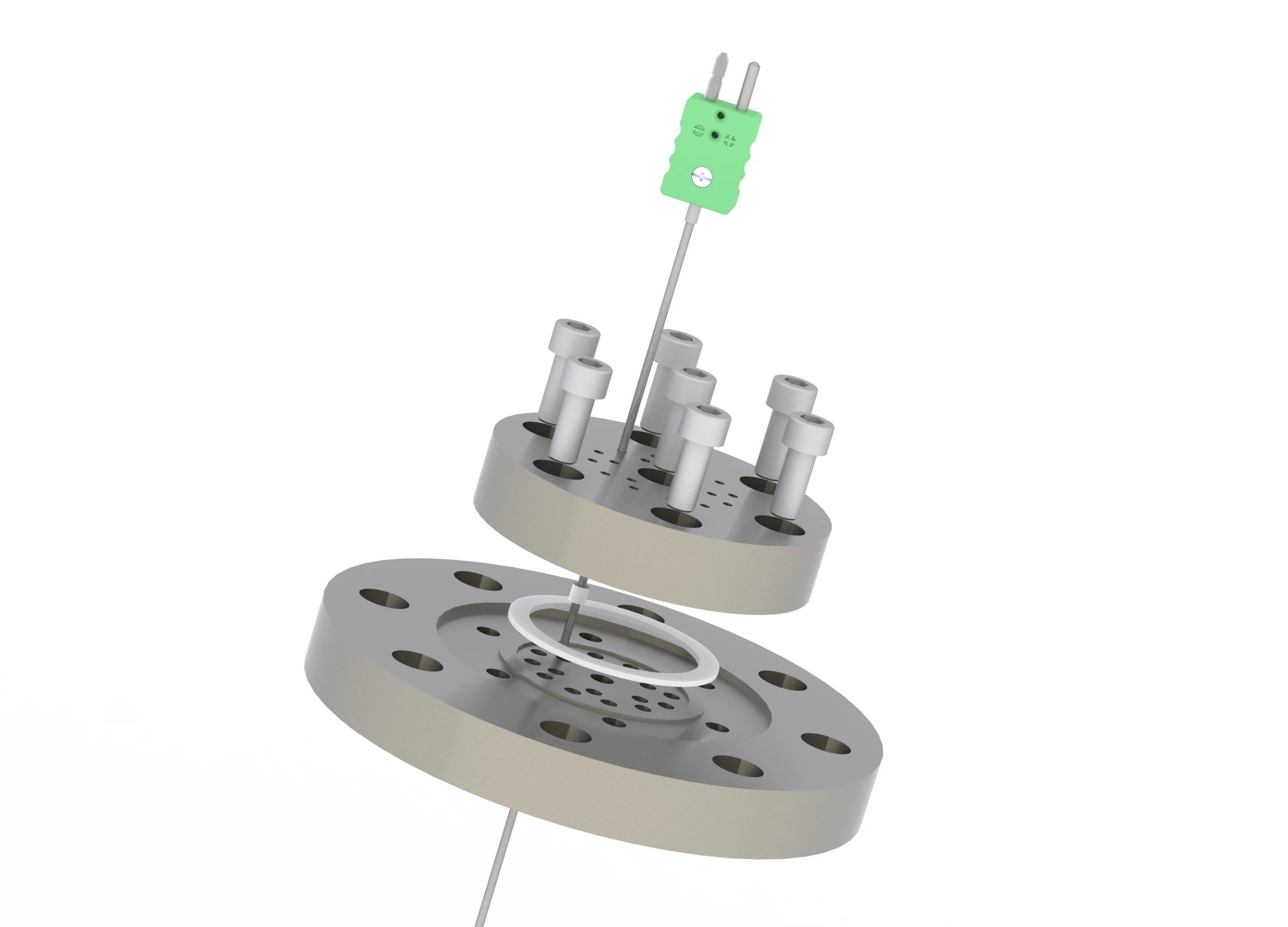

Vacuum-tight feedthrough with ISO 2861 small flange and junction box for up to 24 cables

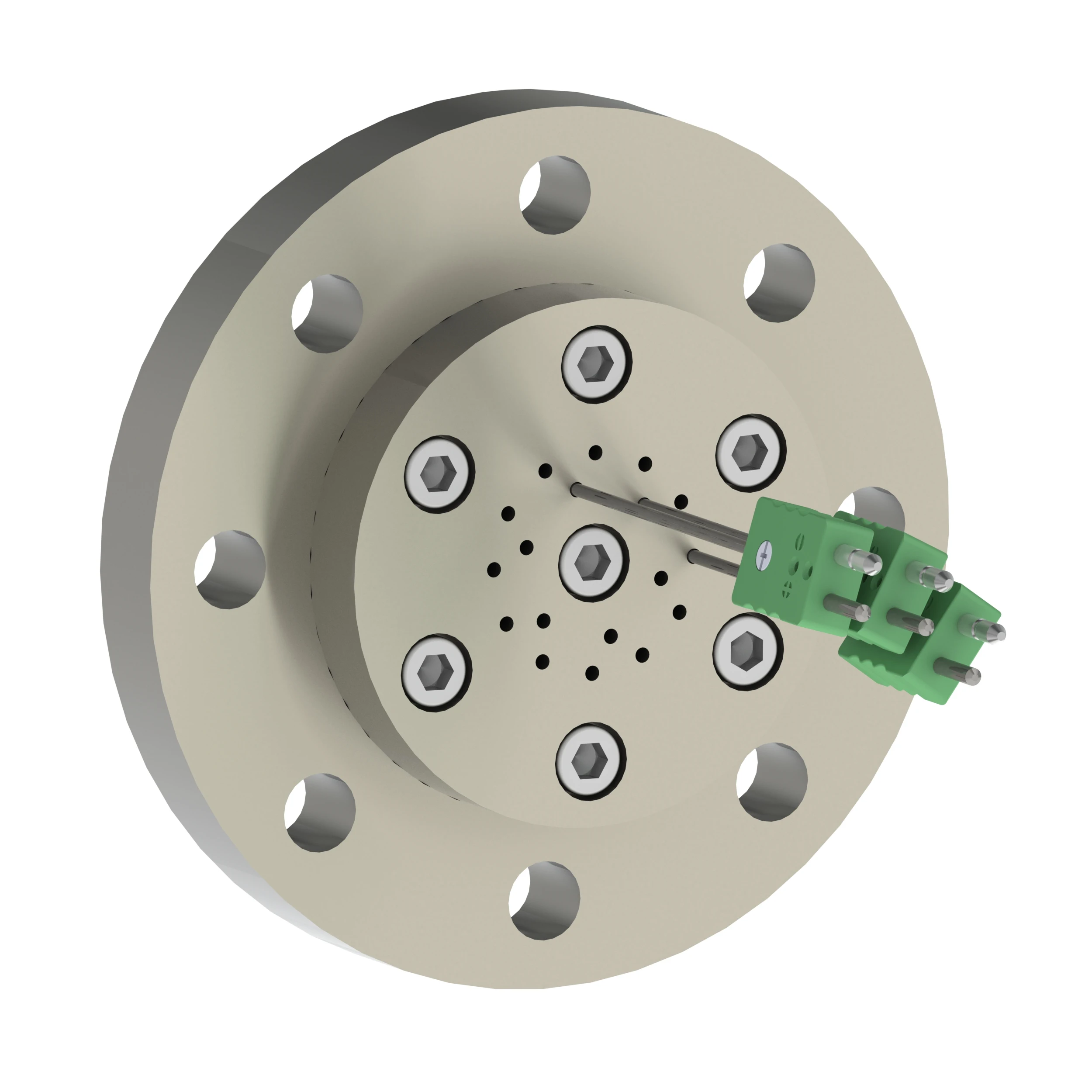

Feedthrough ISO flange 1092 DN 80 for 18 sheathed cables

Your custom feedthrough

We take your specification and produce your custom feedthrough. Select from our existing configurator.
Start Inquiry

Specification

The specification is structured with following keys:
28 - PP - XX TT FF MM - L1 - L2
28 Feedthroughs
PP Process fitting
G34 G3/4" DIN 228 thread with stop nut
KF25 Small Flange SN25
KF40 Small Flange DN40
KF40B Connection box on KF40
FL80 ISO flange EN 1092 DN80
XX Number of cables
TT Type Thermocouple EN 60584-1
01 Type S (PtRh10% - Pt)
02 Type R (PtRh13% - Pt)
03 Type B (PtRh30 - PtRh6)
04 Type K (NiCr - NiAl)
05 Type N (NiCrSil - NiSil)
06 Type J (FeCu - Ni)
07 Type U (Cu - Cu)
08 Type C (WRe26 - WRe5)
09 Type T (Cu - CuNi)
10 Type E (NiCr - CuNi)
11 Type L (Fe - CuNi) DIN 5843
FF Cable feed
MT015 Mineral insulated cable Ø1,5 mm
MT020 Mineral insulated cable Ø2,0 mm
MT030 Mineral insulated cable Ø3,0
TL050 Thermocouple cable mit 2 x Ø,50 solid wires
AG050 Compensating cable with 2 x Ø,50 solid wires
MM Fixation
01 Fixed cables
02 Movable cables
L1 Length of cable on sealing side
L2 Length of cable on the outside

Variants

Fixed feedthroughs with G3/4" thread
Pressure range 10-1 mbar to 2 bar

  • Process connection with G3/4" DIN 228 thread
  • Gas-tight up to 300°C and pressure-resistant up to 2 bar
  • Standard with 6 feedthroughs for 2 x 0.5mm2 lines
  • Optionally pre-assembled with suitable connectors
Select G3/4" variant

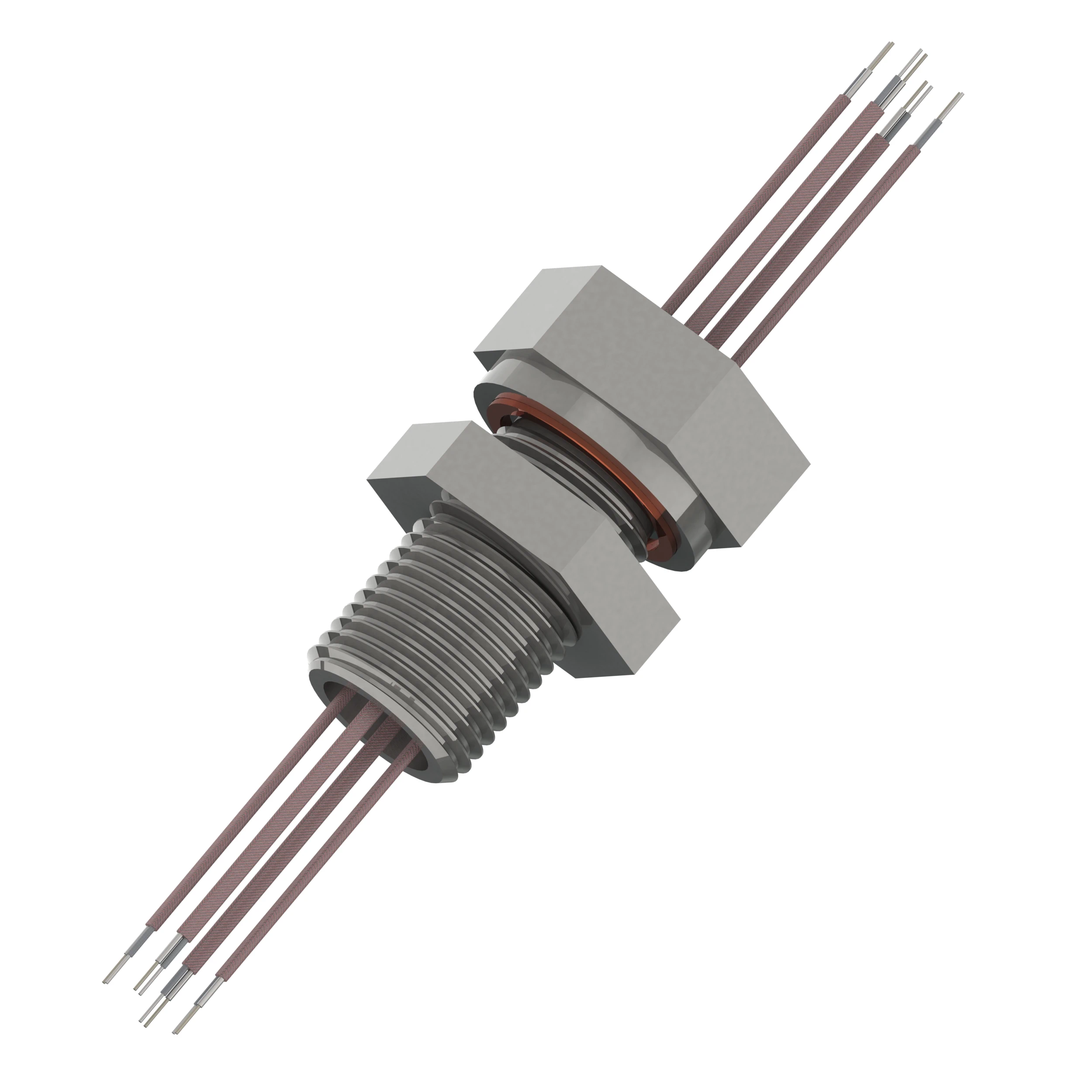

Feedthroughs for 6 lines with G3/4 inch DIN 228 process thread

Fixed feedthroughs with small flange
Pressure range 10-4 mbar to 5 bar

  • Process connection with small flange ISO 2861
  • Individual process connection possible according to specification
  • Vacuum-tight and pressure-resistant up to 5 bar
  • Standard with 6 feedthroughs for 2 x 0.5mm2 lines
  • Optionally pre-assembled with suitable connectors
Select small flange variant

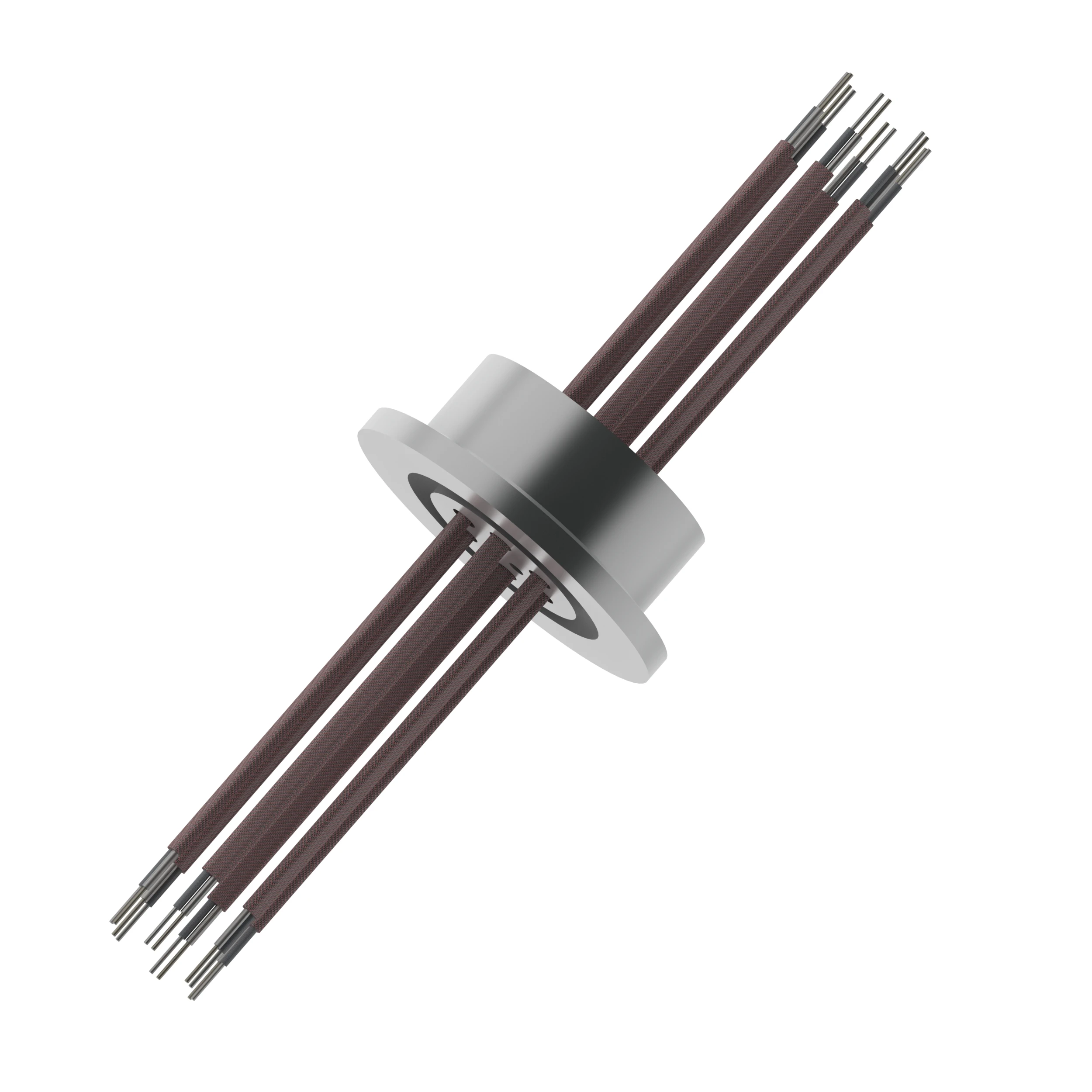

Feedthroughs for 6 lines with small flange ISO 2861 DN 25

Fixed connection box with small flange
Pressure range 10-4 mbar to 20 bar

  • Process connection with small flange ISO 2861 DN40
  • Individual assembly with built-in plugs or sockets
  • Vacuum-tight and pressure-resistant up to 20 bar
  • Standard with 6 places for standard plug connections
  • Standard assembled with 600 mm long sheathed cables
Select connection box variants

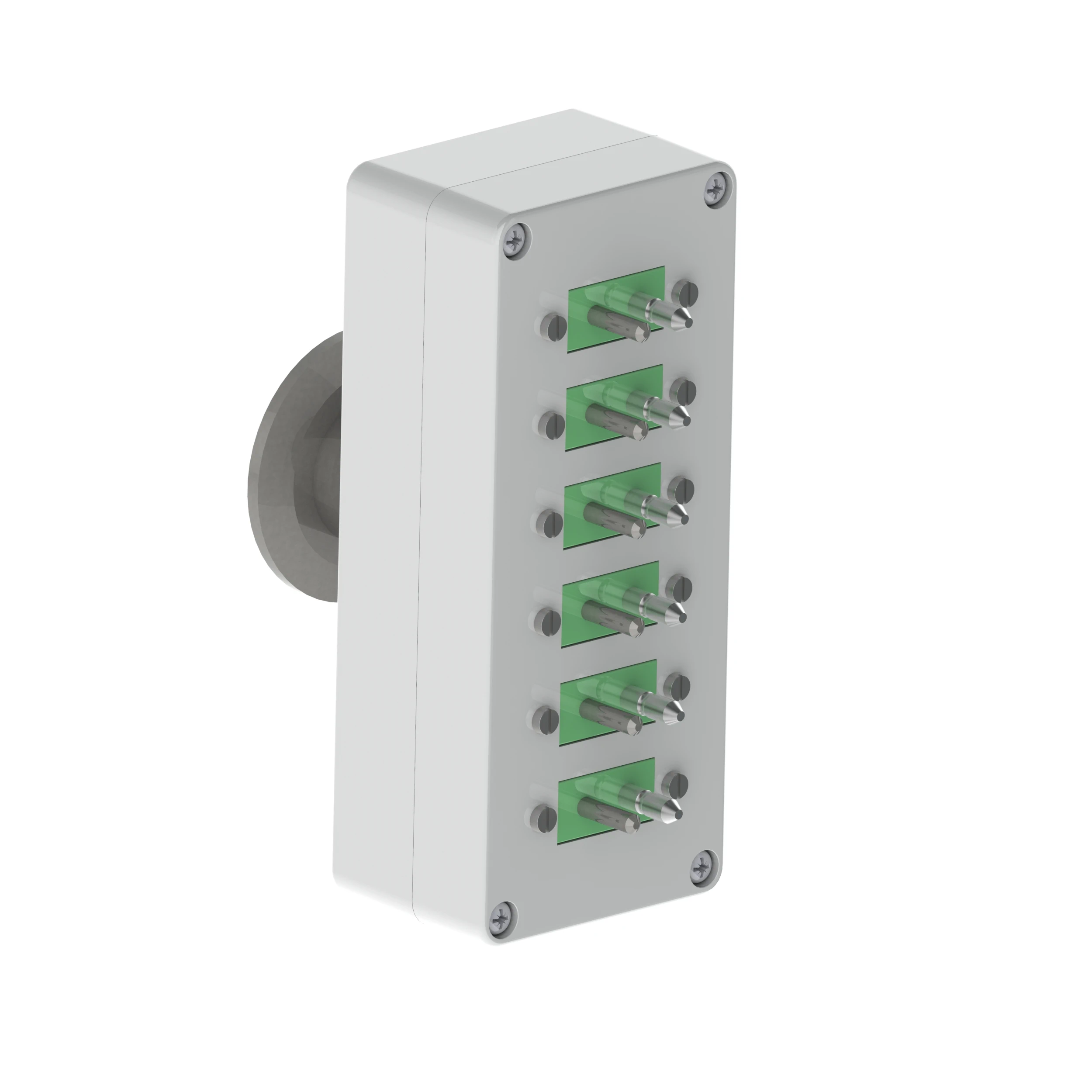

Vacuum feedthrough with connection box to ISO 2861 Small Flange
