Vacuum fitting for EN 1092 DN 80 flange

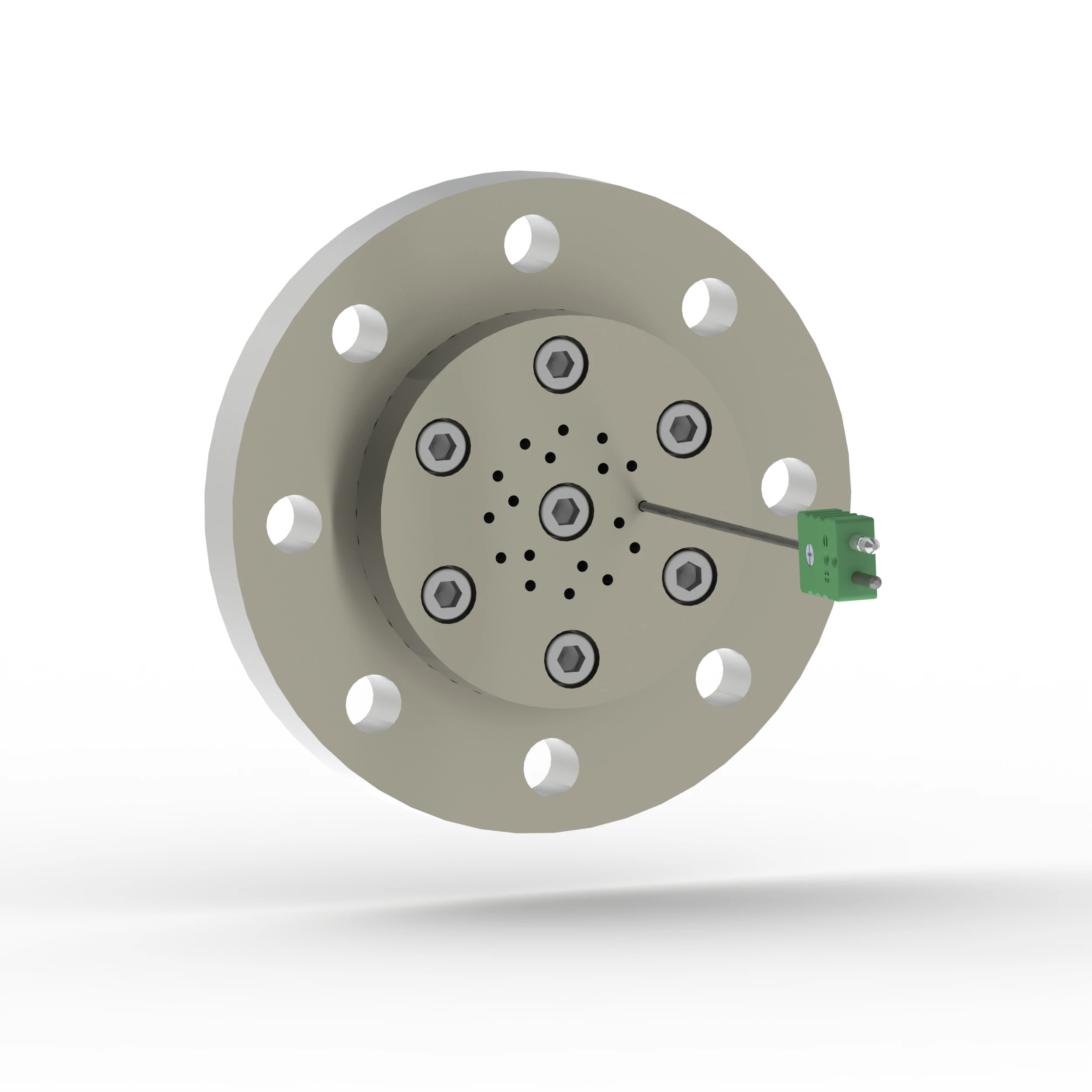

Vacuum feed-through with an EN 1092 DN 80 flange for 18 interchangeable channels for jacket cables with a standard diameter of 2.0 mm
Scope of Application
Vacuum-tight feedthrough for up to 24 sheathed thermocouples for connecting batches in vacuum systems. A flange conforming to DIN ISO 1092 Type 5 Form A DN80 PN16 serves as the process connection. Other flange sizes are available as an option.
Specifications
| 28 | - | FL80 | - | XX | TT | FF | MM | - | L1 | - | L2 |
Show detailed specifications
| 28 | Implementation | ||||||
| FL80 | ISO Flange EN 1092 DN80 | ||||||
| XX | Number of lines | ||||||
| TT | Thermocouple Type EN 60584-1 | ||||||
| FF | Mounting
| ||||||
| MM | Mounting
| ||||||
| L1 | Length of the line on the sealed side | ||||||
| L2 | Length of the cable (outer diameter) |
Example
| 28 | - | FL80 | - | 12 | 05 | MT030 | 02 | - | 0600 | - | 0400 |
Fitting with ISO flange EN 1092 DN80, 12 x Type N replaceable jacket pipe Ø3.0, 600 length on the sealing side and 400 length on the outer side.
Drawings

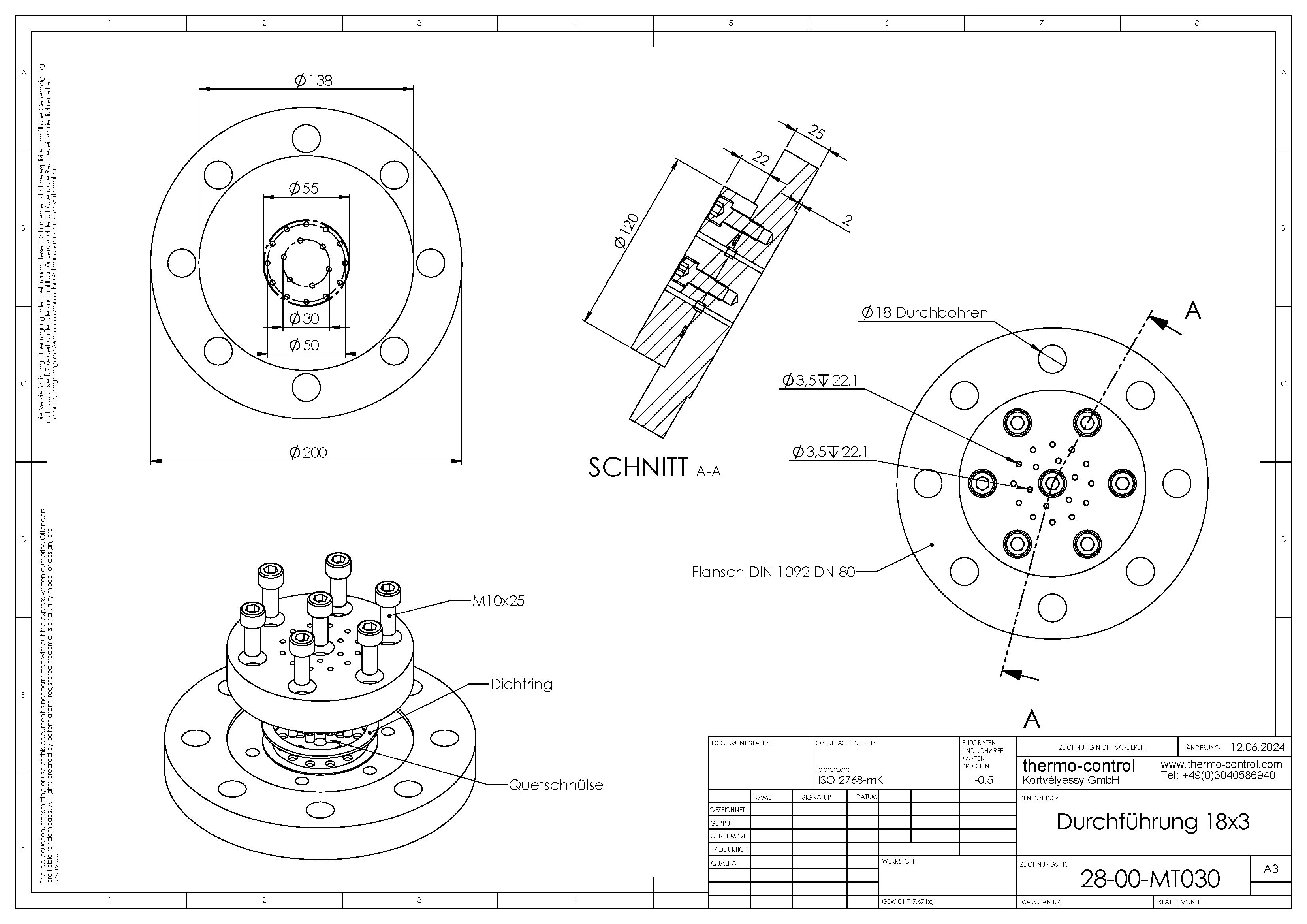

18-fache Durchführung mit ISO Flansch EN 1092 DN80 für Ø3,0 Leitungen
