MI thermocouple with miniature connector

Scope of application

Application as control, drag or batch element in various atmospheres.

Specification

The specification is structured as follows:
16 - MM XX TT - DDD - F - LLLL CC

Example

16 - 02 01 04 - 015 - S - 0700 MCHT

Straightened Mineral Insulated Thermocouple with MCSH assembly, single type K, Ø1.5mm sheath and nominal length 700 mm

Drawings

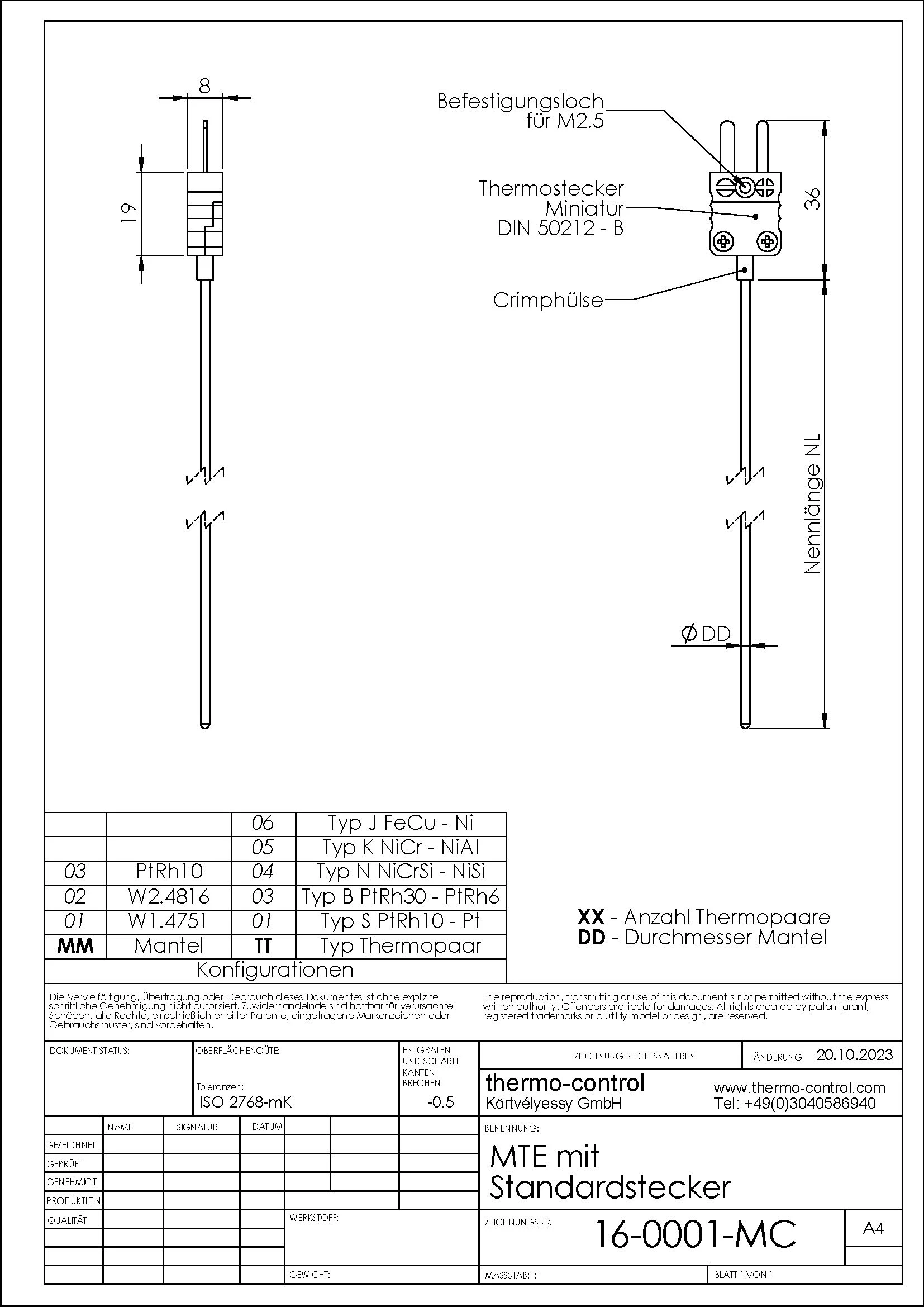

Variant standard connector normal
Variant standard connector normal
Oberview drawing 51kB Oberview drawing 51kB 3D STEP 51kB 3D eDrawings 51kB CAD files ~1MB

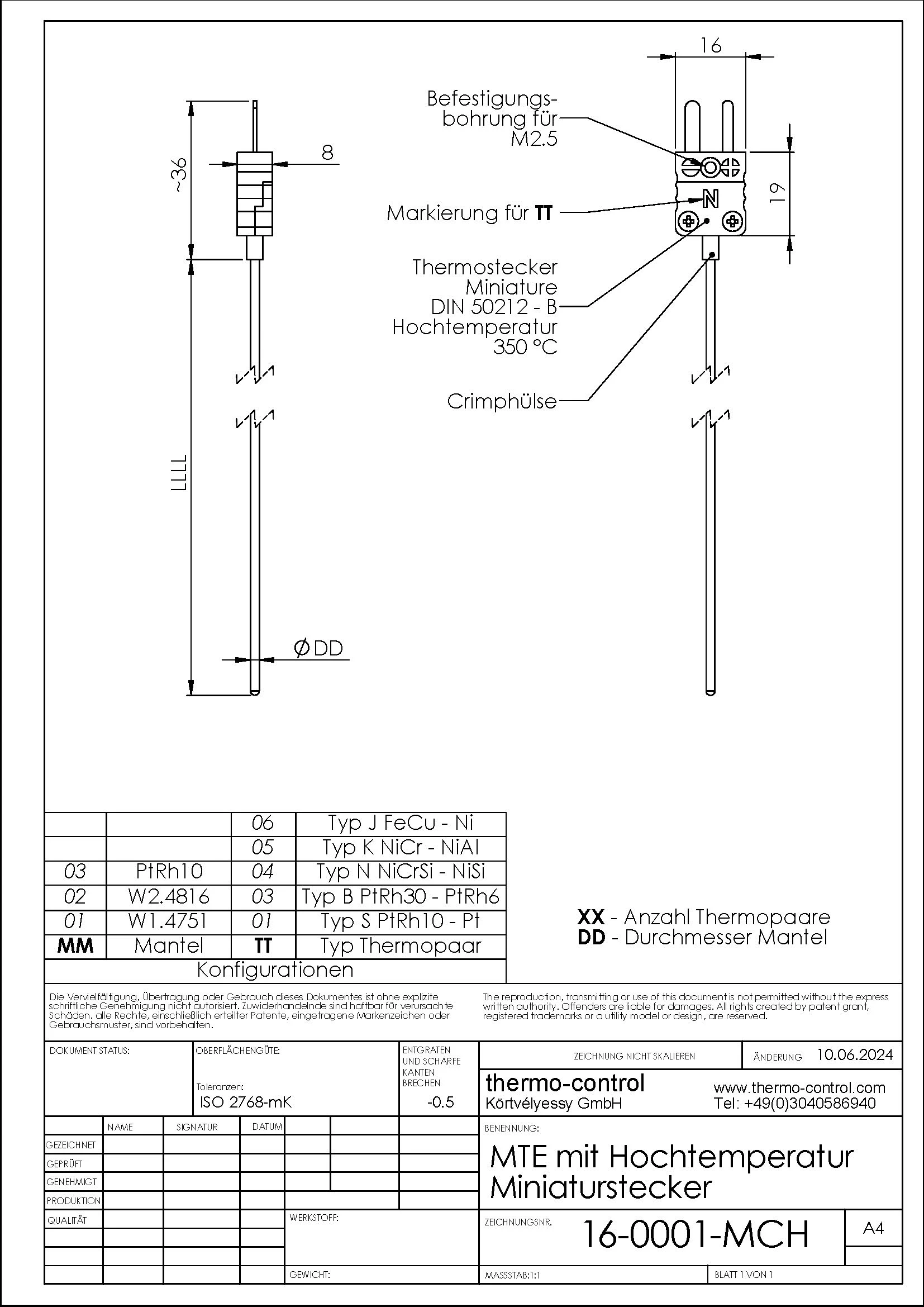

Variant standard connector high temperature
Variant standard connector high temperature
Oberview drawing 77kB Oberview drawing 135kB 3D STEP 590kB 3D eDrawings 79kB CAD files 479 kB

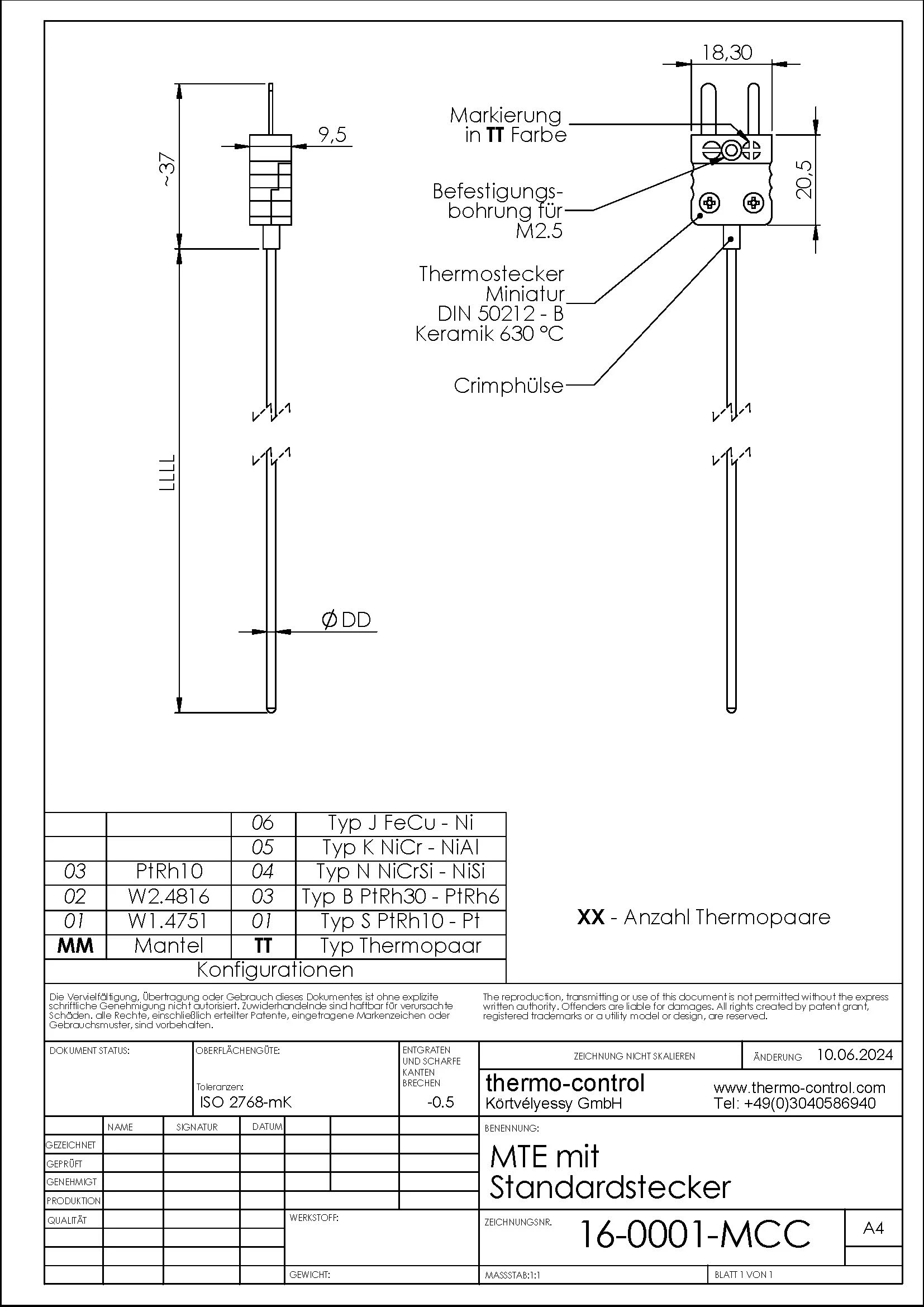

Variant standard connector ceramic
Variant standard connector ceramic
Oberview drawing 77kB Oberview drawing 133kB 3D STEP 539kB 3D eDrawings 67kB CAD files 446kB

You can download the free program eDrawings Viewer to view our drawing files on any device without a CAD environment.

eDrawings by Dassult Systems
