MI thermocouple blank

Scope of application

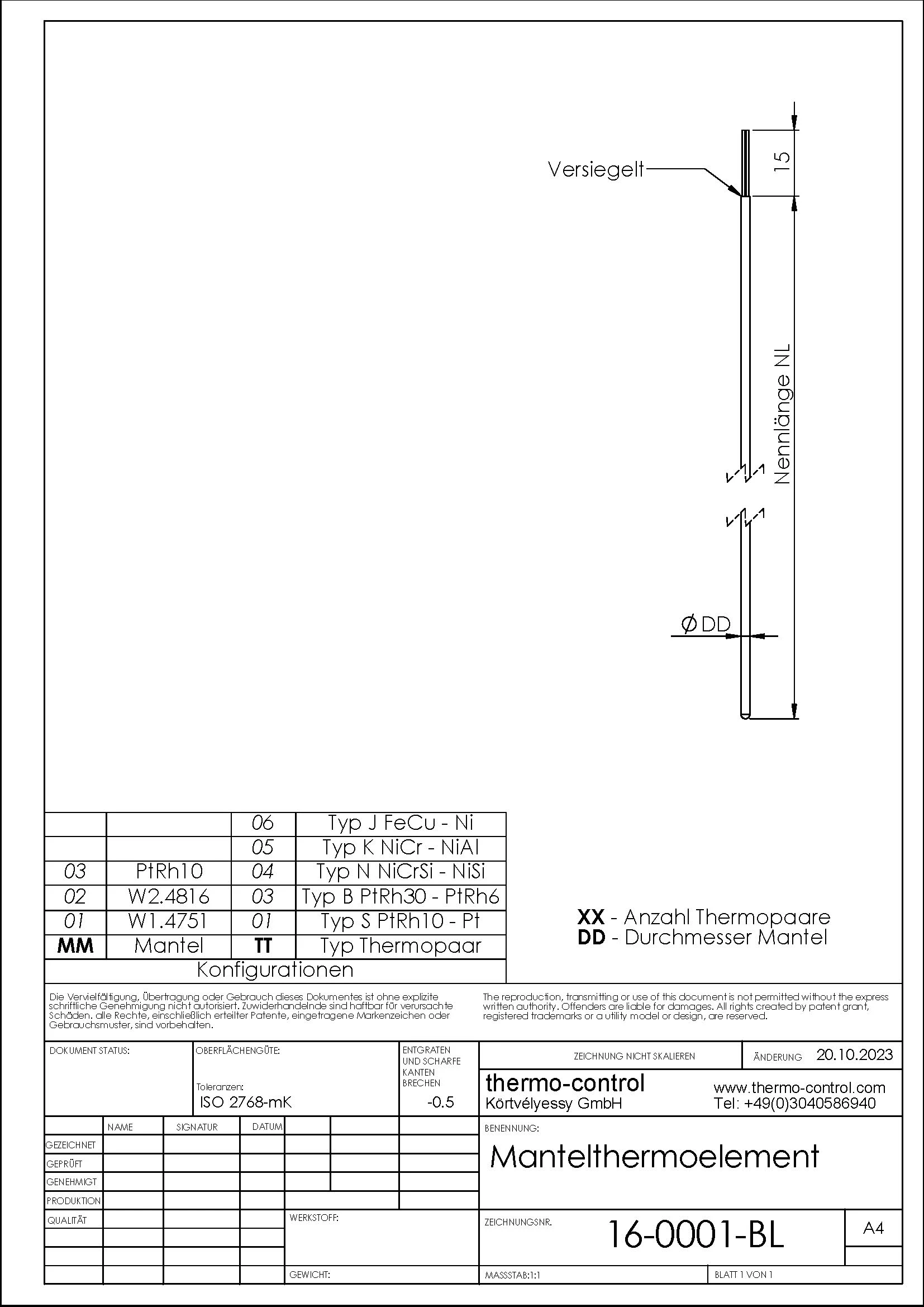

Blank mineral insulated (MI) thermocouples with stripped and sealed cold end ready for further assembly. They are suitable for measurements in fluids, gases or surface temperatures.

Specification

The specification is structured as follows:

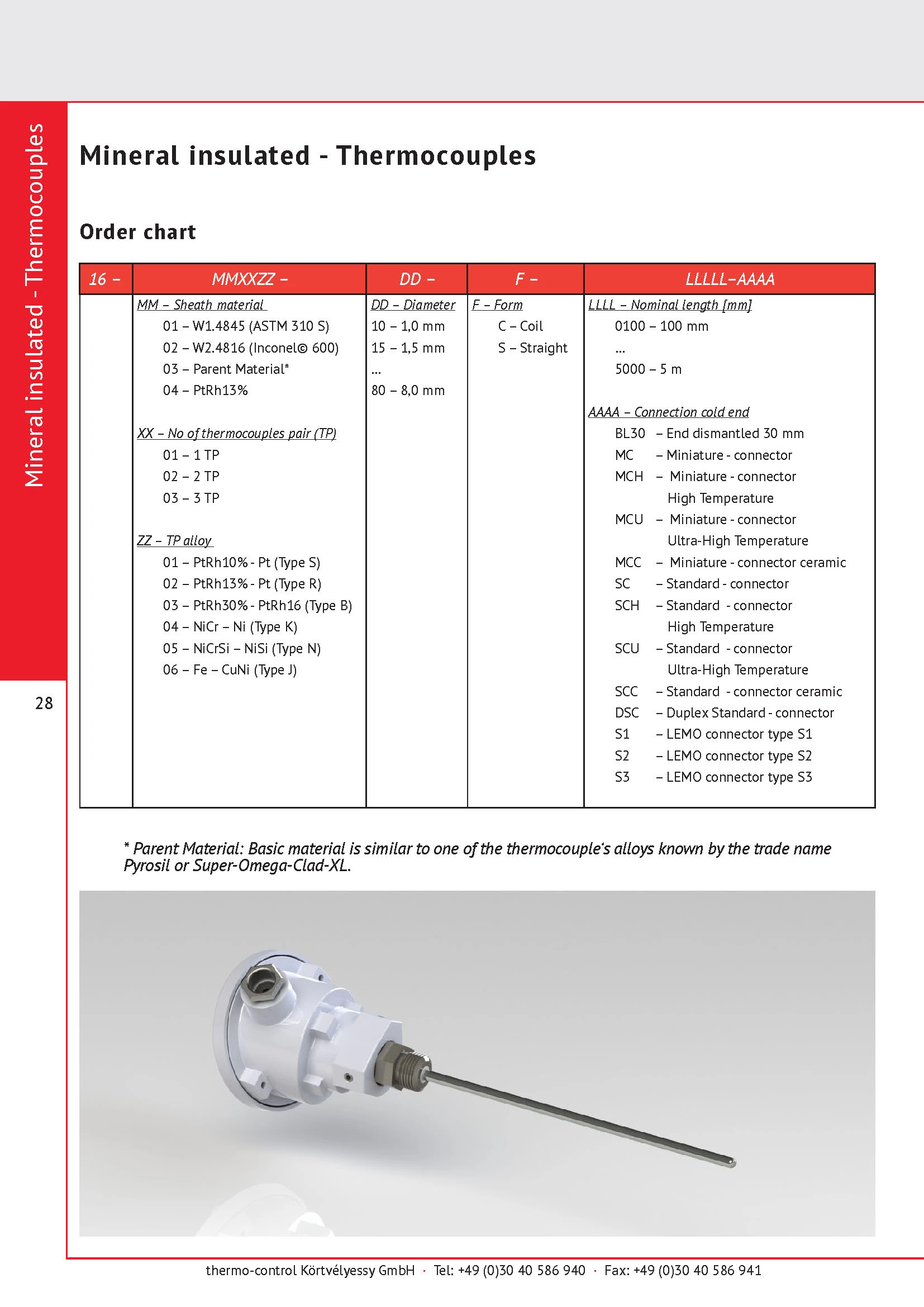

16 - MM XX TT - DDD - F - LLLL CC

Example

16 - 02 01 05 - 015 - S - 0500 BL30

Straight sheathed thermocouple type N with Inconel 600 sheath, 1.5 mm x 450 mm nominal length and end sealed +30 mm dismantled

Your inquiry

We would be happy to accept your request. Please use the form below. You can use the search function to find the right product in our database based on article numbers, specifications or serial numbers. Alternatively, you can quickly put together your desired product using the configurator.
