All thermo-control Körtvélyessy GmbH oxygen probes combine the highest quality with many years of expertise.
The following products are available as accessories:
- Air Supply Unit
- Splitter amplifier
- Display Devices
Accessories for Oxygen Probes
Accessories for oxygen probes: air supply units, isolation amplifiers, display units. Compatible with all thermo-control oxygen probes.
Overview of Available Products

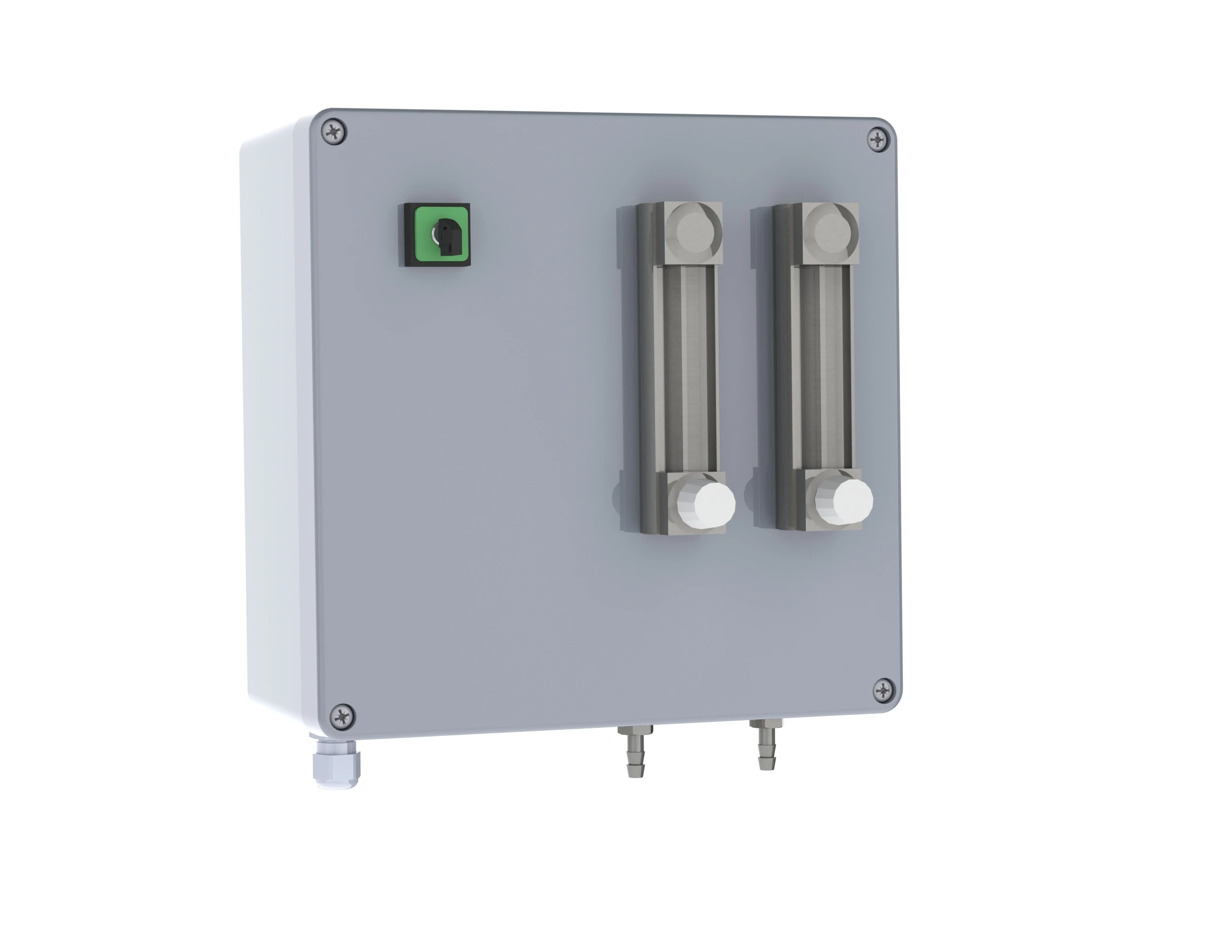

Air Supply Unit
Supplying oxygen probes with purge and reference air
- Supply via a diaphragm pump or the building's compressed air system
- Powered by 24/48 V DC or 230 V AC
- Manual control for purge air
- Open-type design with heat shield plates and rods for welding on
- Enclosed version in an ABS housing with a diaphragm pump

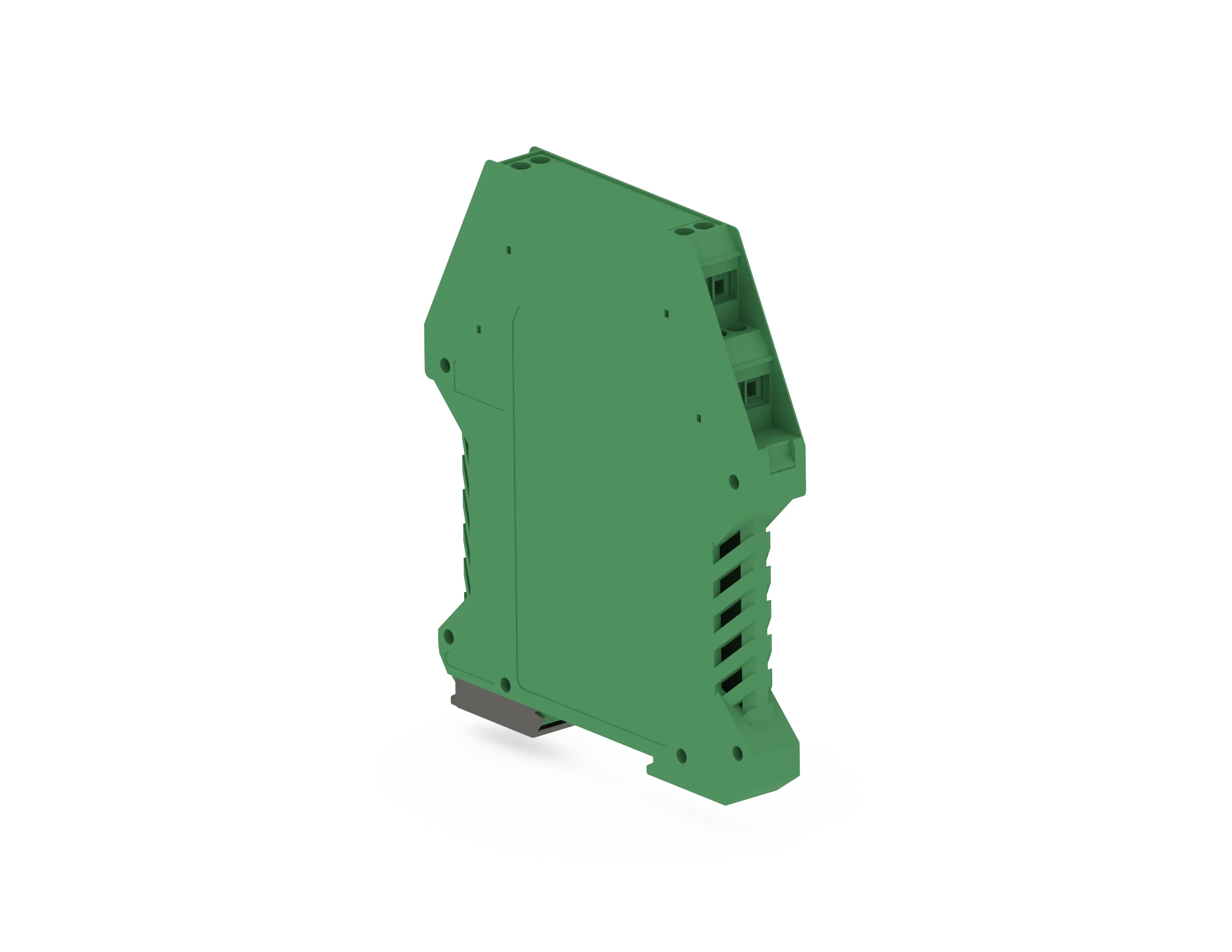

Splitter amplifier
Reliable transmission of the measurement signal
- Powered by 24/48 V DC or 230 V AC
- Mounting on a 25 mm top-hat rail
- Output signal 4 ... 20 mA or 0–10 V
- 10 MOhm input resistance

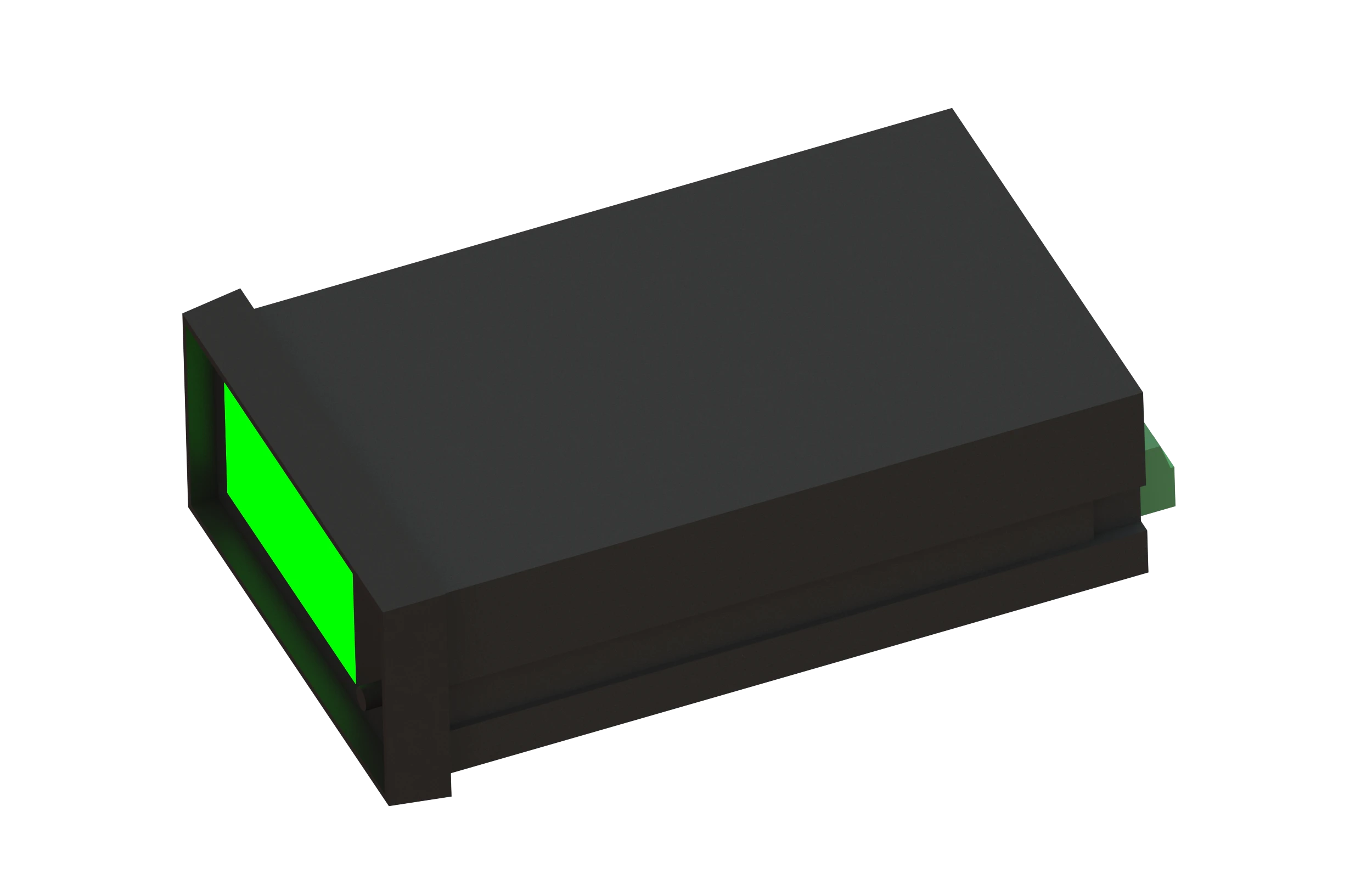

Display device
Display of the measured % O₂ content
- Power supply via 24/48 V DC or 230 V AC
- 10 MOhm input for probe voltage
- Input for thermocouple (Type S, R, N, K)
- Output signal 4 ... 20 mA or 0–10 V
- 1/3 DIN size
Posted
Mass production was discontinued in June 2020 due to lack of demand. Production is still possible, but with longer lead times and higher costs.
We look forward to receiving your inquiry
