Measure the avaliable content of oxygen in atmospheres with inert protective gas or under air atmosphere with 30 mbar negative pressure up to briefly 2 bar overpressure.
| 9 | - | 01 | XX | TT | - | LLLL | PPP | A |
| 9 | - | 01 | 01 | 01 | - | 0700 | SR27 |

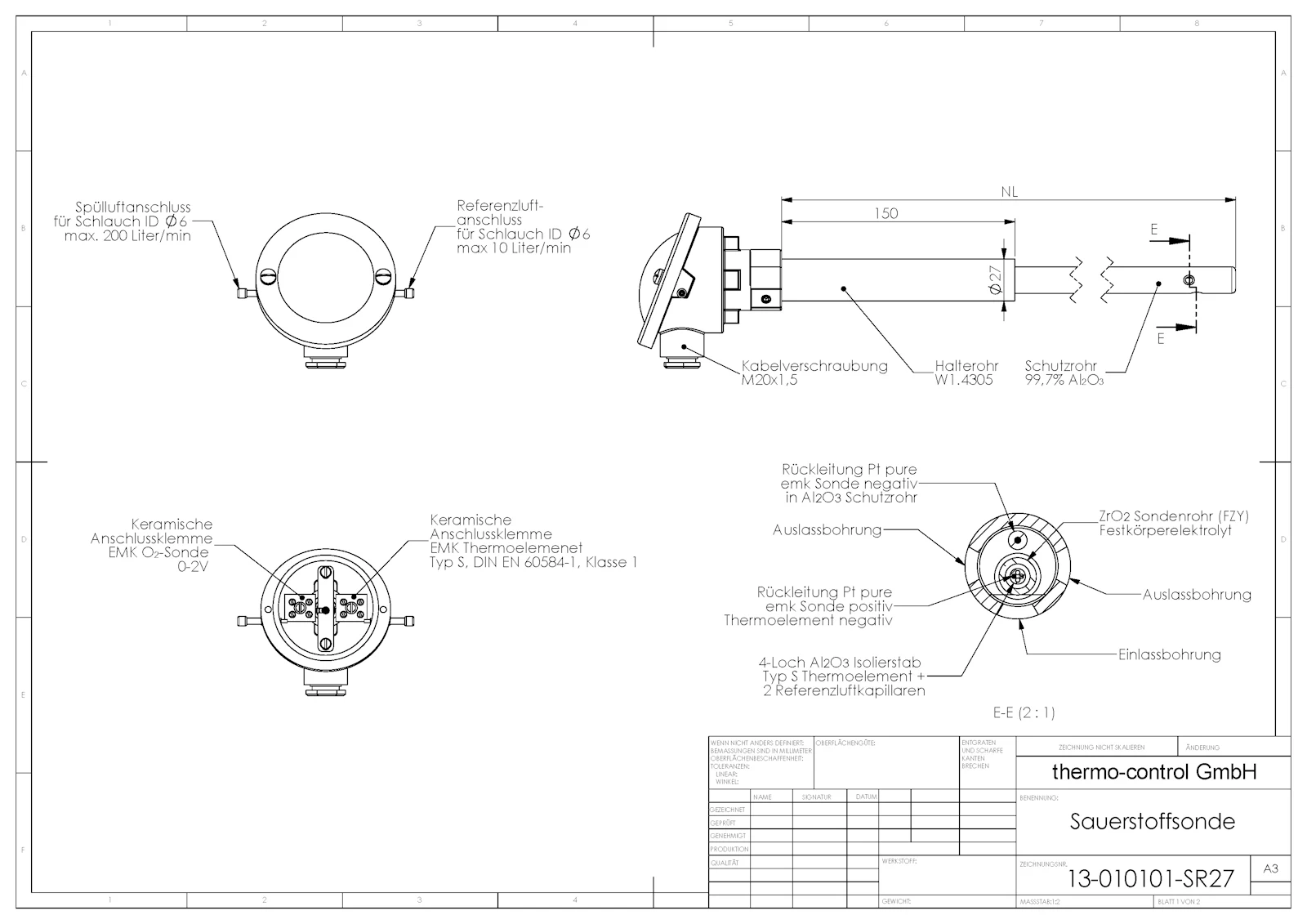

Inert gas oxygen probe with Ø27 x 150 mm holding tube, type S thermocouple and 700 mm nominal length

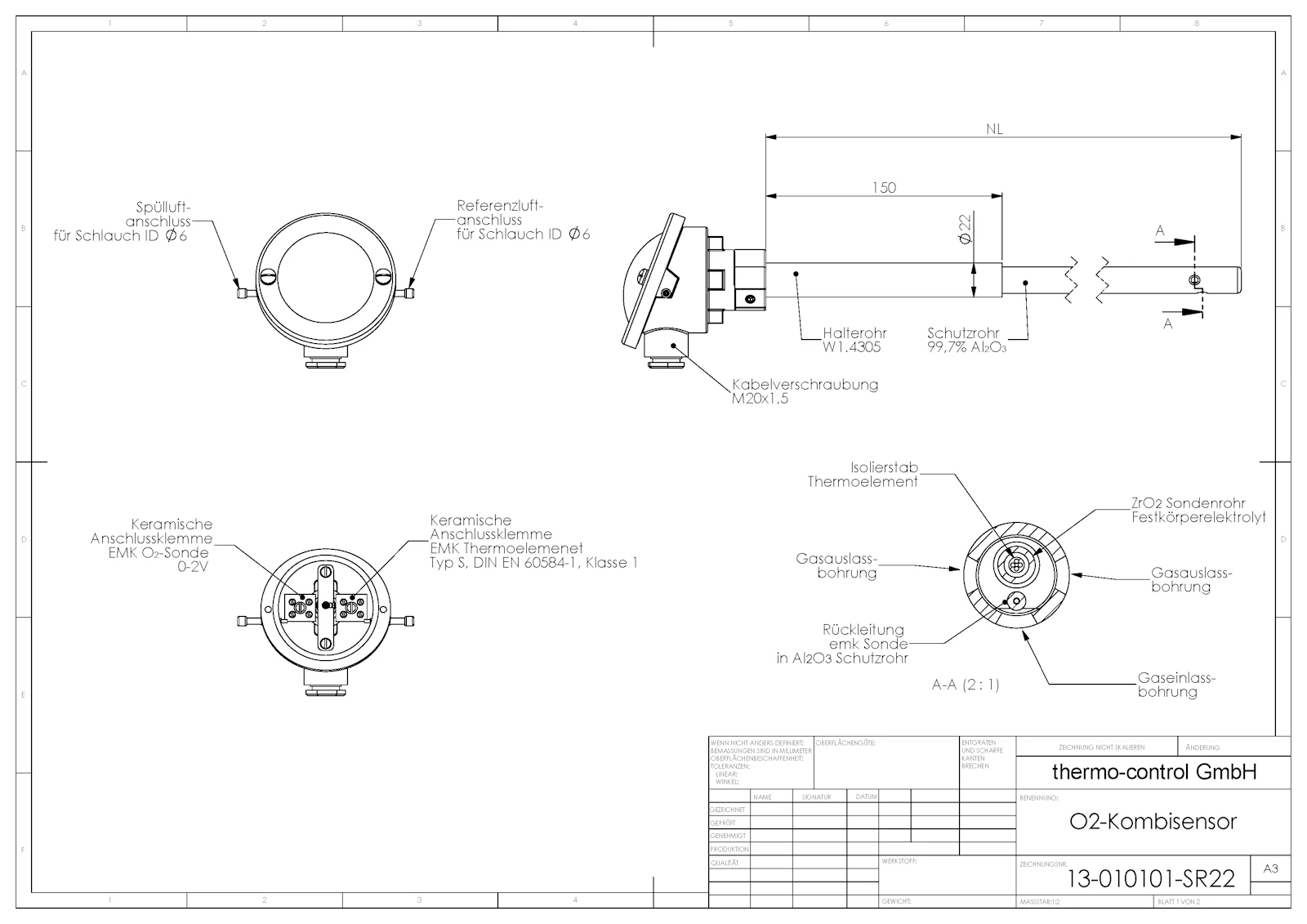

9-010101-0600SR22, 9-010101-0700SR22,9-010101-0700SR27, 9-010101-0800SR229-010101-0800SR27
Notice for the nominal length
As standard, oxygen probes can only be manufactured up to a nominal length of 1000 mm due to manufacturing reasons.
You can download the free program eDrawings Viewer to view our drawing files on any device without a CAD environment.
We would be happy to accept your request. Please use the form below. You can use the search function to find the right product in our database based on article numbers, specifications or serial numbers. Alternatively, you can quickly put together your desired product using the configurator.
