MI thermocouple connection head type B and process thread

Scope of application

Mineral insulated thermocouple with type B connection head and process thread is suitable for measurements in fluids, gases or surface temperatures.

Specification

The specification is structured as follows:
16 - MM XX TT - DD - F - LLLL CC

Example

16 - 02 01 04 - 045 - S - 0530 BAG12

Straight mineral insulated thermocouple type K with Inconel 600 sheath, 4.5 mm x 530 mm nominal length, small connection head form B and G1/2" process thread.

Other common variants

16-020205-30-S-0750BAG38, 16-020105-60-S-0530BAG12, 16-020105-60-S-0530BAWG34

Drawings

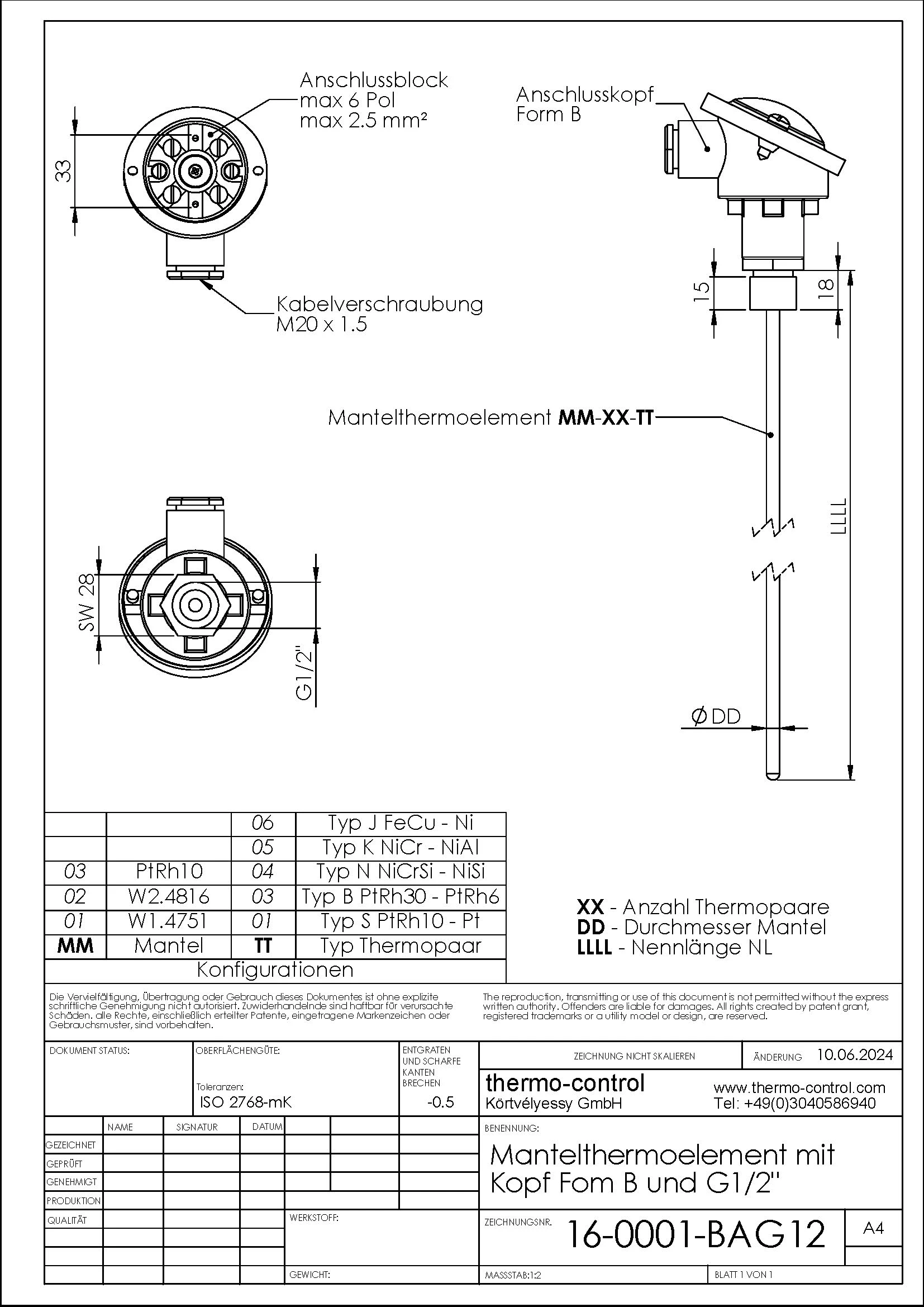

Variant with connection head type B and G1/2" thread
Variant with connection head type B and G1/2" thread
Oberview drawing 51kB Oberview drawing 51kB 3D STEP 51kB 3D eDrawings 51kB CAD files ~1MB

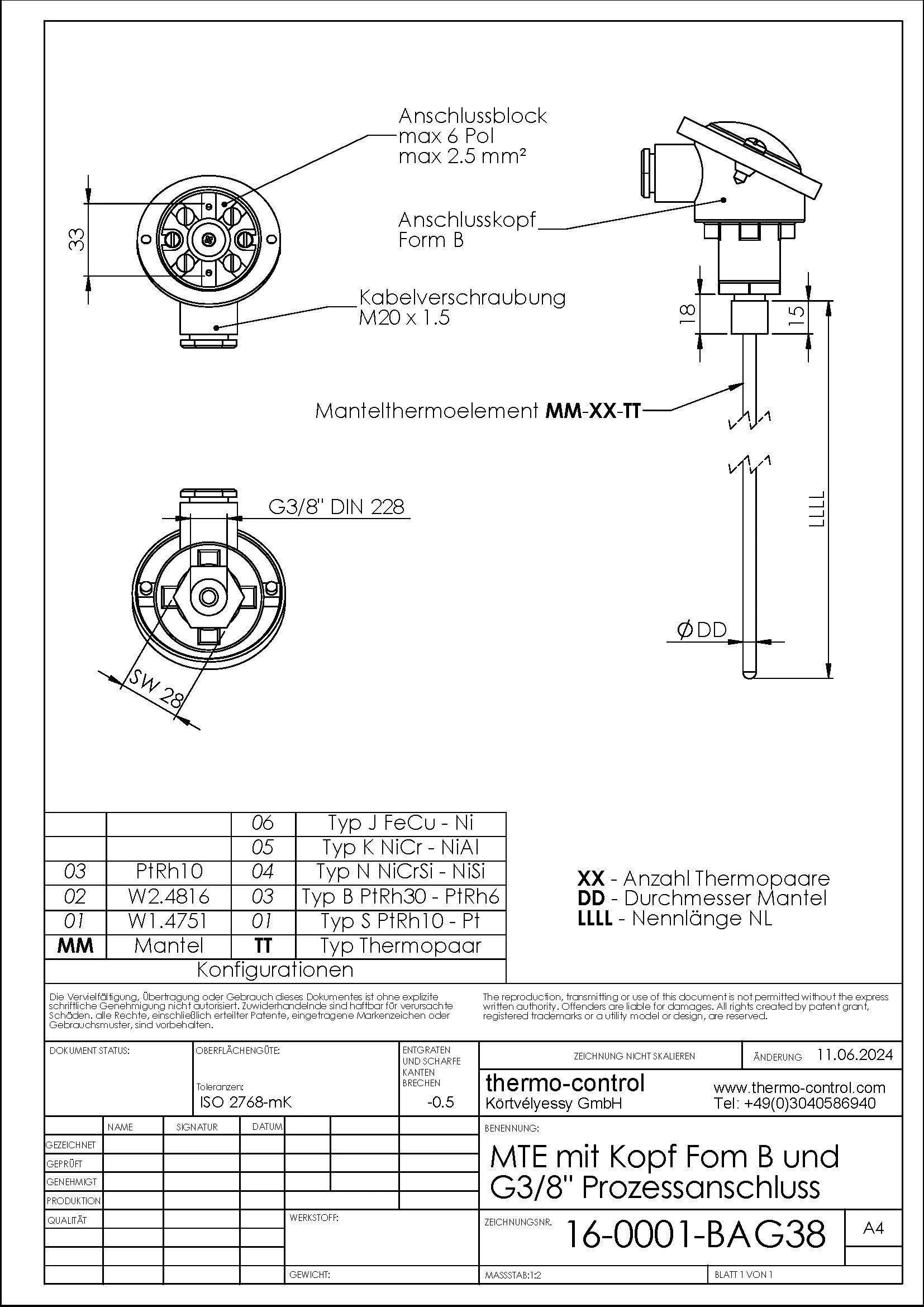

Variant with connection head type B and G3/8" thread
Variant with connection head type B and G3/8" thread
Oberview drawing 51kB Oberview drawing 51kB 3D STEP 51kB 3D eDrawings 51kB CAD files ~1MB

You can download the free program eDrawings Viewer to view our drawing files on any device without a CAD environment.

eDrawings by Dassult Systems
