Test thermocouple with compensation cable and standard connector @ thermo-control.com

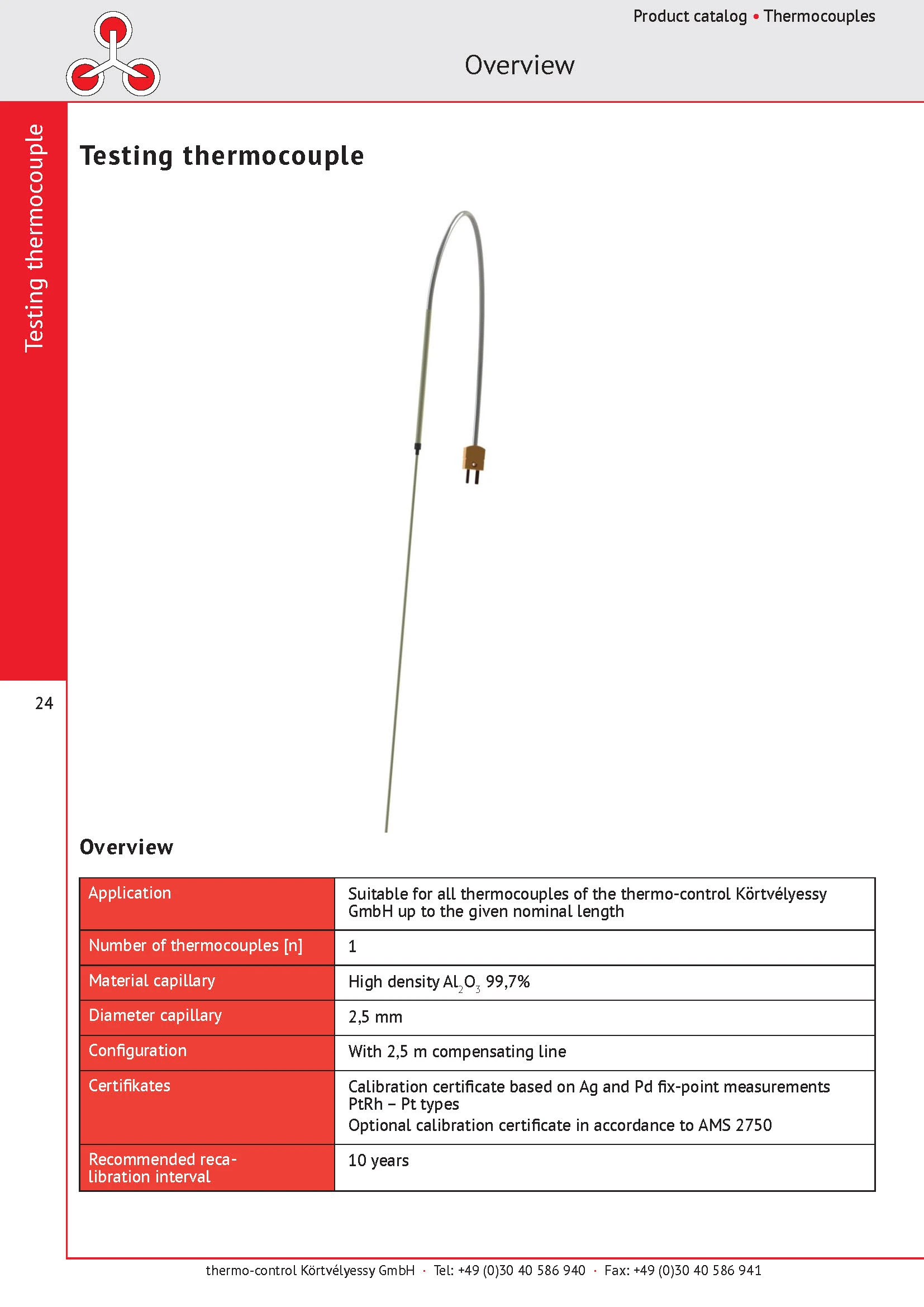

Scope of application

In-situ testing of permanently installed thermocouples. Suitable for all thermo-control thermocouples and supplied with a 2.5 m long compensation cable. A standard thermoplug (according to DIN 50212 Form A) is fitted to the end of the cable as standard. A special protective tube is used for storage and transport.

Specification

The specification is structured as follows:

LLLL

Test thermocouples

Calibration according to

01	Calibration certificate based on fixed points Al, Zn, Au, Pd with correction values from 0 °C - 1500 °C in 100K steps ⁽¹⁾
02	Calibration certificate according to AMS 2750 from 0 °C to 1500 °C in 100K steps ⁽¹⁾
03	DakkXs calibration certificate 0 °C to 1500 °C in 100K steps ⁽¹⁾

1 Thermocouple

Type thermocouple Type Thermocouple EN 60584-1

01	Type S (PtRh10% - Pt)
02	Type R (PtRh13% - Pt)
03	Type B (PtRh30 - PtRh6)
04	Type K (NiCr - NiAl)
05	Type N (NiCrSil - NiSil)
06	Type J (FeCu - Ni)
07	Type U (Cu - Cu)
08	Type C (WRe26 - WRe5)
09	Type T (Cu - CuNi)
10	Type E (NiCr - CuNi)
11	Type L (Fe - CuNi) DIN 5843

LLLL

Nominal length in mm from 0050 to 1600

AAAA

Assembly

BL 20	2.5 m compensation cable silicone 2 x 0.22 mm², ends bare, 20 mm stripped
MC	2.5 m silicone compensating cable 2 x 0.22 mm², thermal plug Miniature (standard 220°C)
SC	2.5 m silicone compensating cable 2 x 0.22 mm², thermal plug Standard (standard 220°C)
LS	2.5 m silicone compensating cable 2 x 0.22 mm², S3 LEMO plug

Example

0700

Test thermocouple type S for thermocouples up to 700 mm nominal length, with 2.5 m compensation cable 2 x 0.22 mm² silicone and standard thermal plug.

Other common variants

10-000101-0700-SC, 10-010101-0800-SC

You can download the free program eDrawings Viewer to view our drawing files on any device without a CAD environment.
