MI thermocouple with standard connector

Scope of application

Application as control, drag or batch element in various atmospheres.

Specification

The specification is structured as follows:
16 - MM XX TT - DDD - F - LLLL CC

Example

16 - 02 01 05 - 015 - S - 0500 SC

Straightened Mineral Insulated Thermocouple with standard connector assembly, single type K, Ø1.5mm sheath and nominal length 700 mm.

Drawings

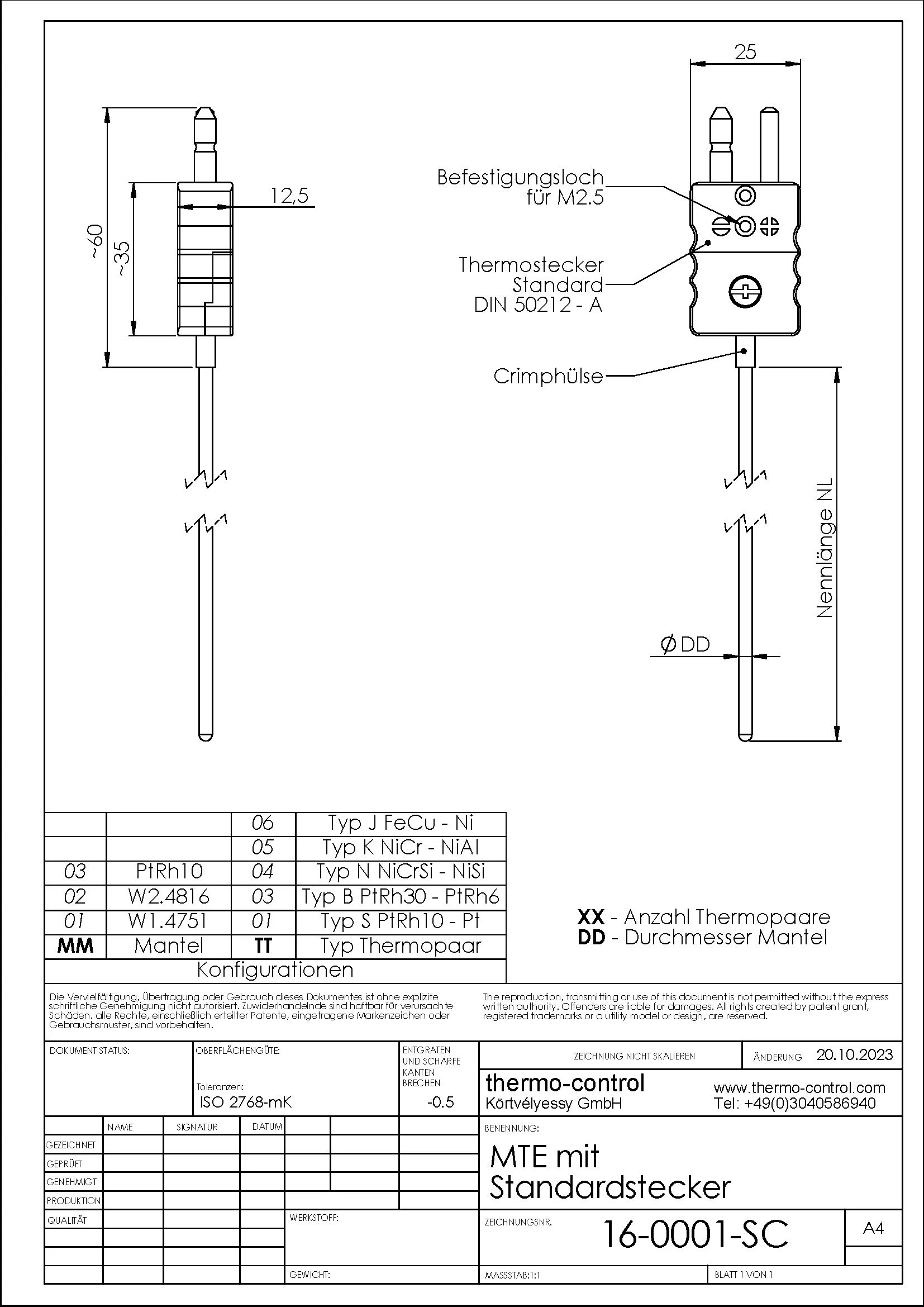

Variant standard connector normal
Variant standard connector normal
Oberview drawing 51kB Oberview drawing 51kB 3D STEP 51kB 3D eDrawings 51kB CAD files ~1MB
Variant standard connector high-temperature
Variant standard connector high-temperature
Oberview drawing 82kB Oberview drawing 166kB 3D STEP 564kB 3D eDrawings 166kB CAD files 507kB

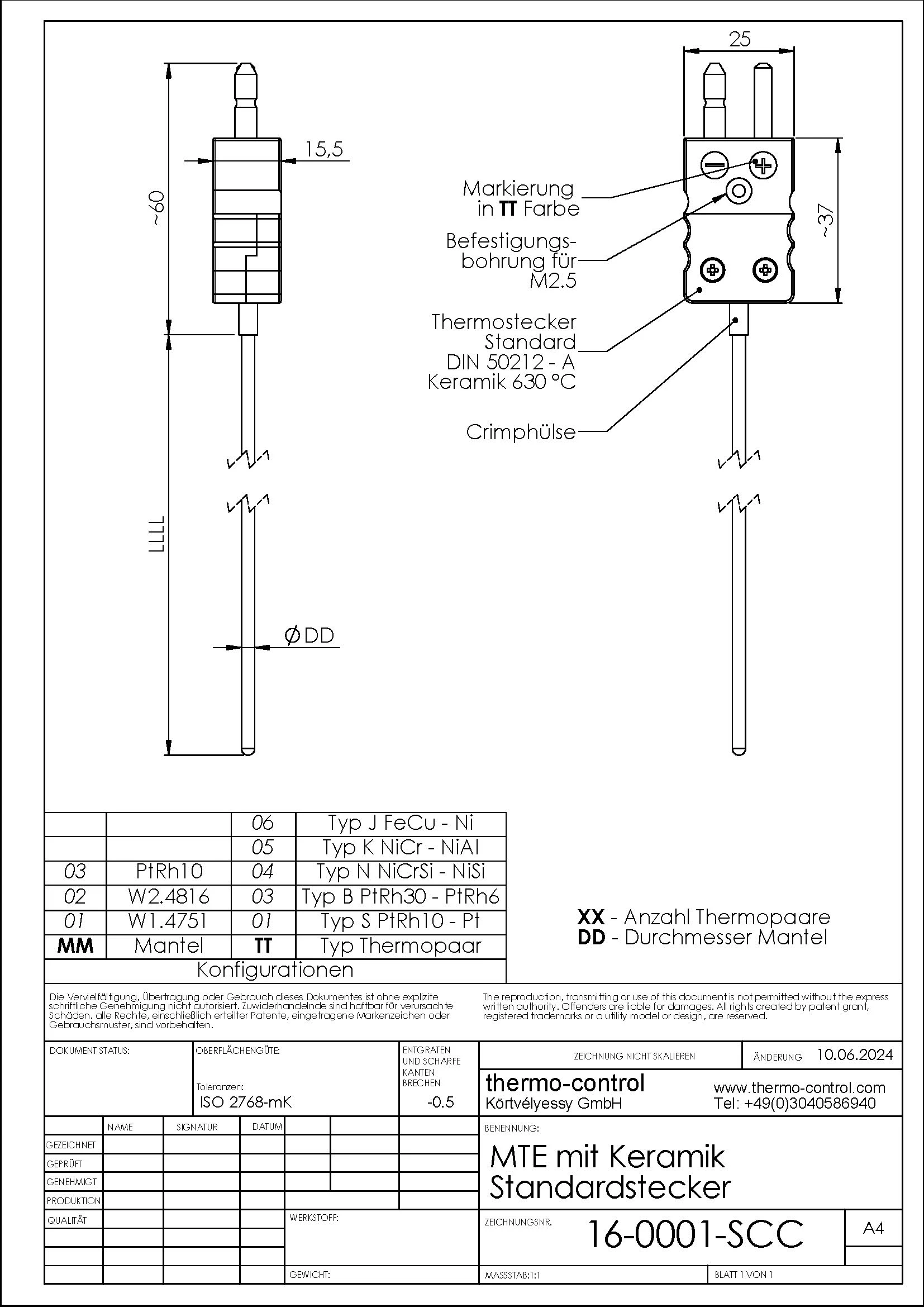

Variant standard connector ceramic
Variant standard connector ceramic
Oberview drawing 86kB Oberview drawing 173kB 3D STEP 657kB 3D eDrawings 110kB CAD files 742kB

You can download the free program eDrawings Viewer to view our drawing files on any device without a CAD environment.

eDrawings by Dassult Systems

Your inquiry

We would be happy to accept your request. Please use the form below. You can use the search function to find the right product in our database based on article numbers, specifications or serial numbers. Alternatively, you can quickly put together your desired product using the configurator.
