MI thermocouple with 2m connection cable

Scope of application

Mineral insulated (MI) thermocouples with a 2 m long connecting cable are suitable for measurements in fluids, gases or surface temperatures.

The measuring signal can be flexibly routed to the reader via the connecting cable.

Specification

The specification is structured as follows:
16 - MM XX TT - DDD - F - LLLL CC

Example

16 - 02 01 05 - 015 - S - 0500 TLBL

Straight sheath thermocouple type N with Inconel 600 sheath, 1.5 mm x 450 mm nominal length and connected thermocouple cable without connector

Notice

For the platinum-rhodium-plated thermocouple types S, R and B we recommend versions with compensating cables.

Drawings

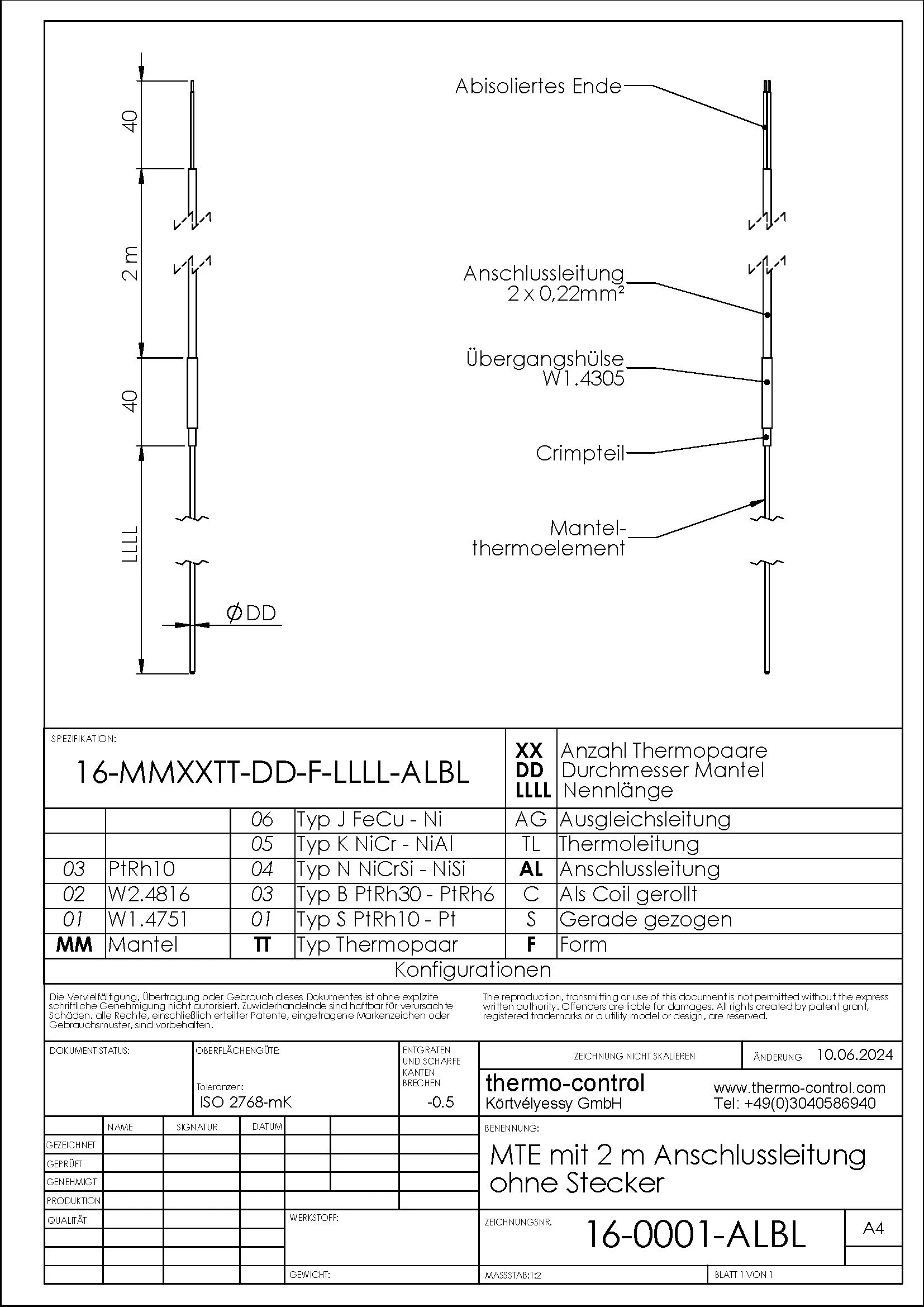

Variant with connection cable without connector
Variant with connection cable without connector
Overview drawing 67kB Overview drawing 112kB 3D STEP 105kB 3D eDrawings 20kB CAD files 341kB

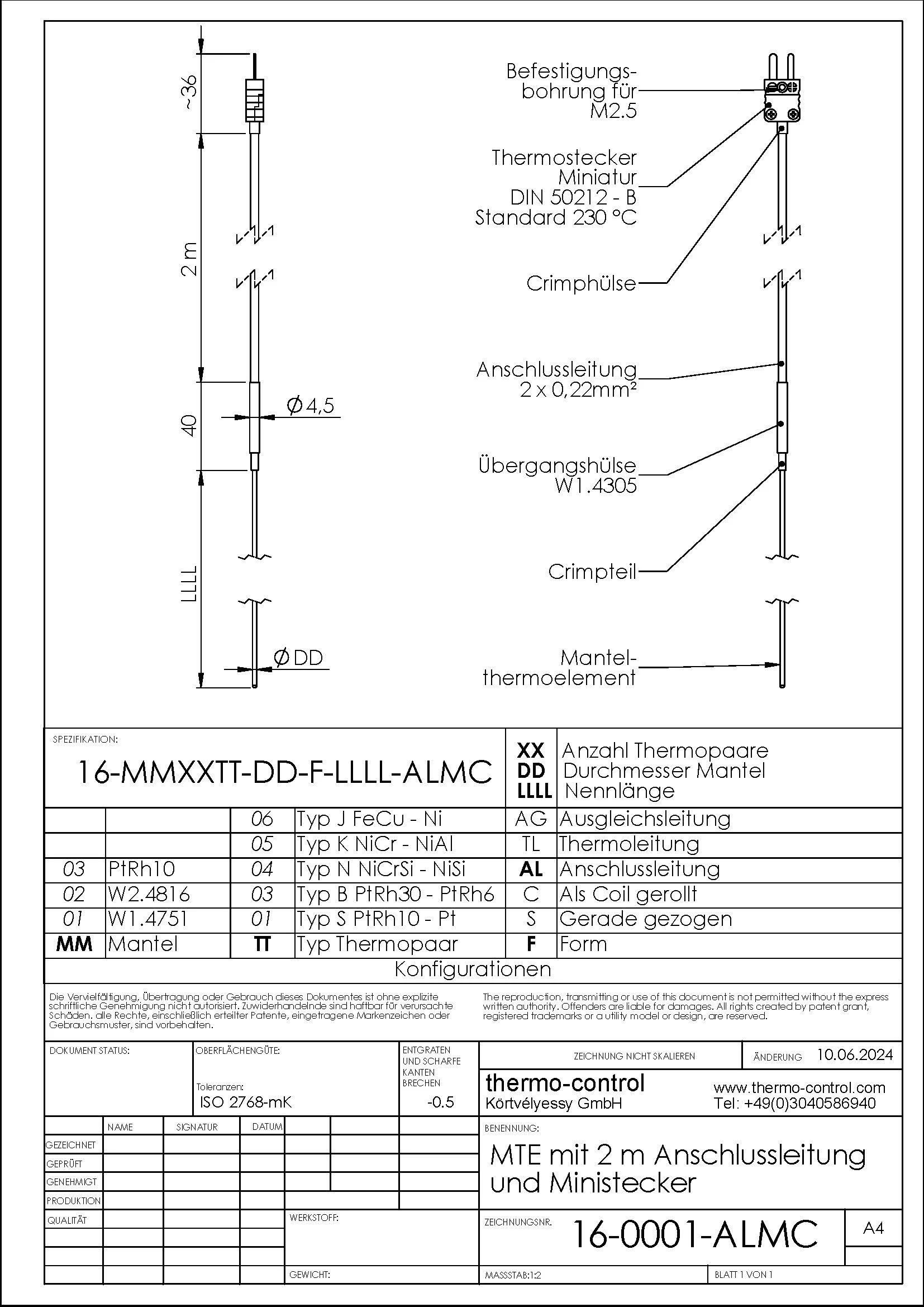

Variant with connection cable and miniature connector
Variant with connection cable and miniature connector
Overview drawing 78kB Overview drawing 146kB 3D STEP 590kB 3D eDrawings 66kB CAD files 492kB

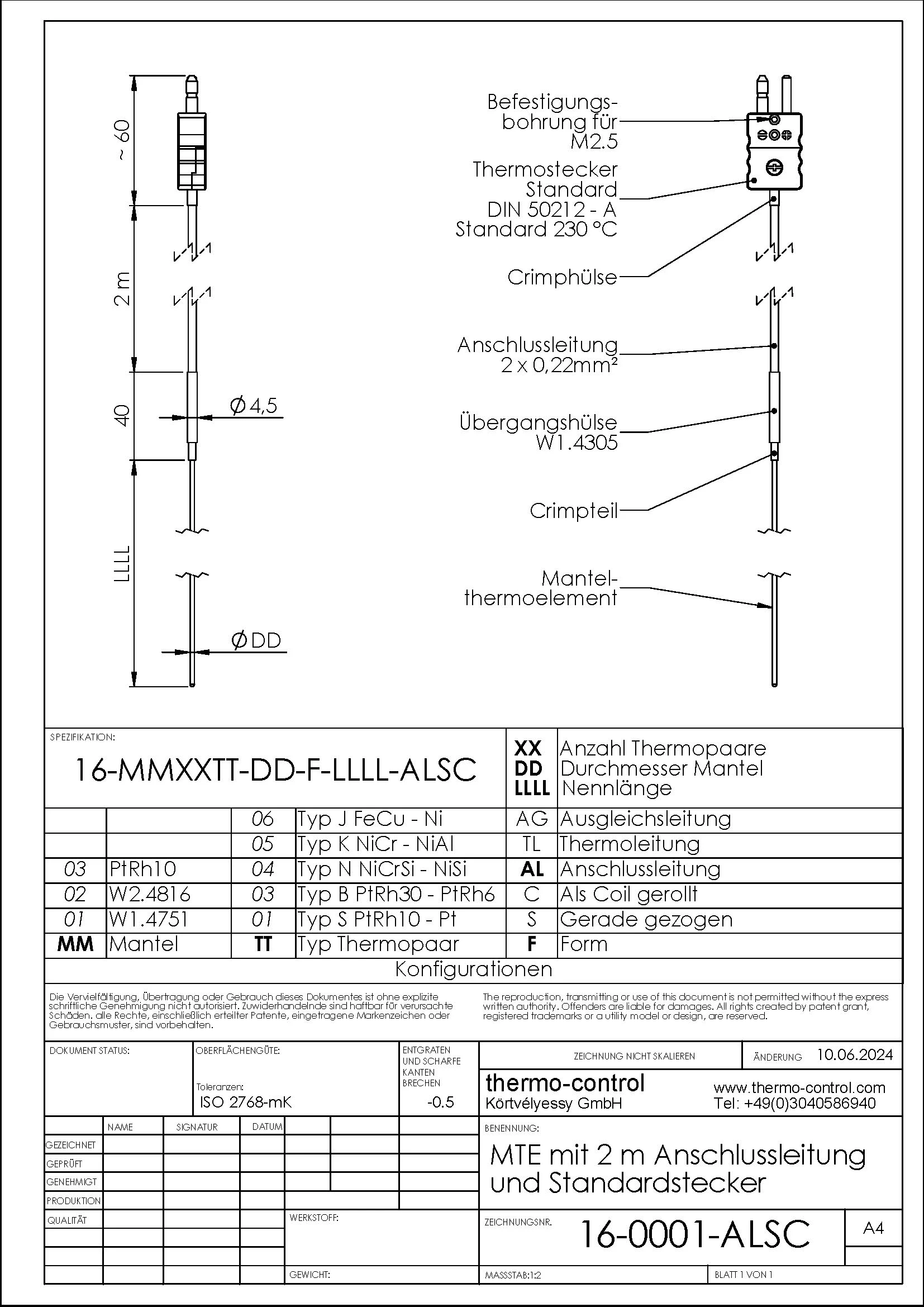

Variant with connection cable and standard connector
Variant with connection cable and standard connector
Overview drawing 79kB Overview drawing 189kB 3D STEP 562kB 3D eDrawings 94kB CAD files 562kB

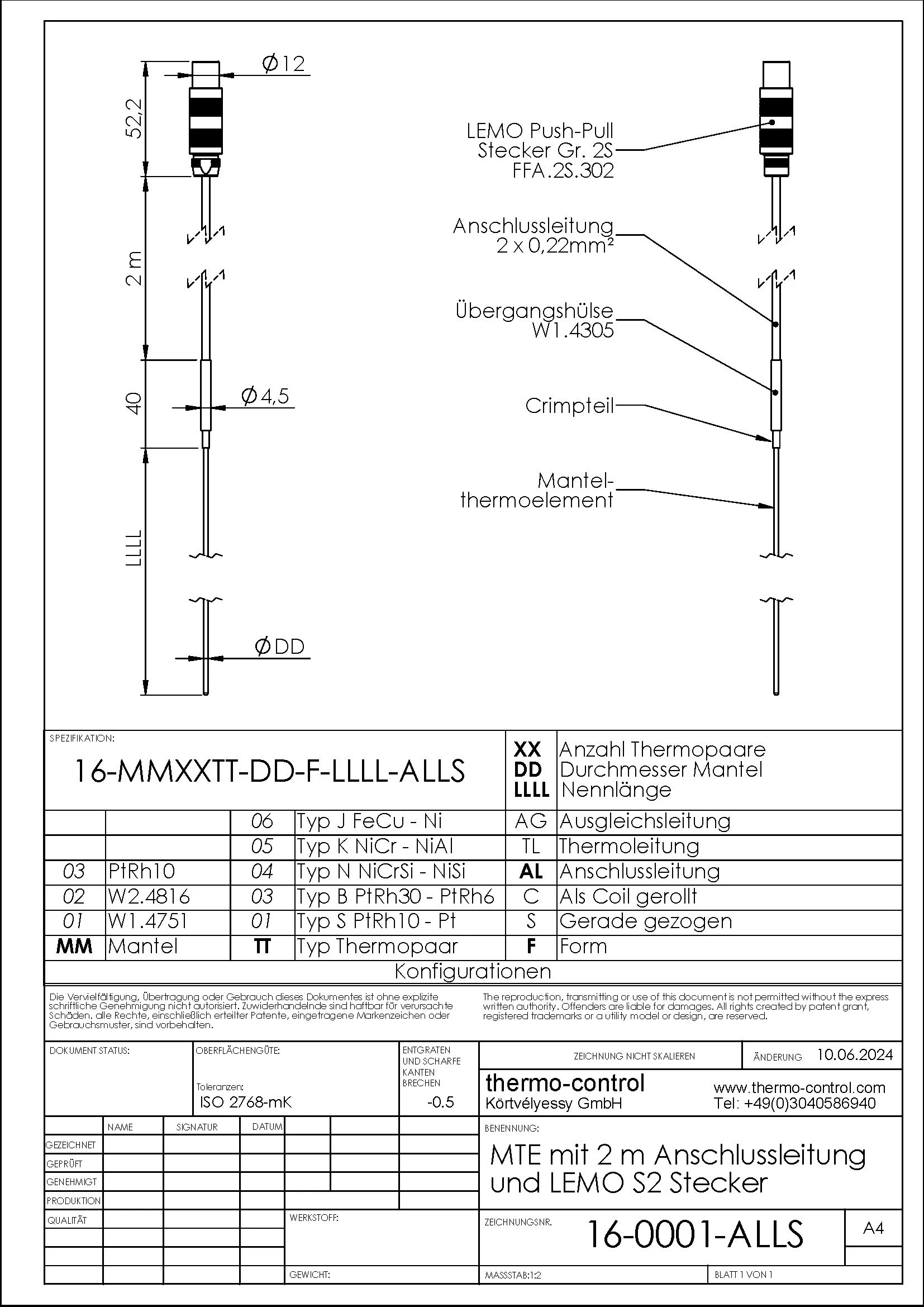

Variant with connection cable and LEMO 2S connector
Variant with connection cable and LEMO 2S connector
Overview drawing 113kB Overview drawing ~7MB 3D STEP ~20MB 3D eDrawings 299kB CAD files ~5MB

You can download the free program eDrawings Viewer to view our drawing files on any device without a CAD environment.

eDrawings by Dassult Systems
