Oxygen probes

All thermo-control Körtvélyessy GmbH oxygen probes combine the highest quality and many years of know-how. They follow the design principles:

  • Completely ceramic structure
  • Suitable for temperature range 480 °C to 1300 °C
  • Contacts and lines made of pure platinum
  • FZY solid-state electrolyte made of one piece
  • Built-in type S thermocouple
  • Connection head form A
  • Standard delivery lengths from 400 mm to 1000 mm
  • No external reference air supply required

Download complete oxygen probe catalog

Download the catalog as a PDF!
Download

Overview

Atmospheric inert gas application

Low pressure / vacuum application

Accessories

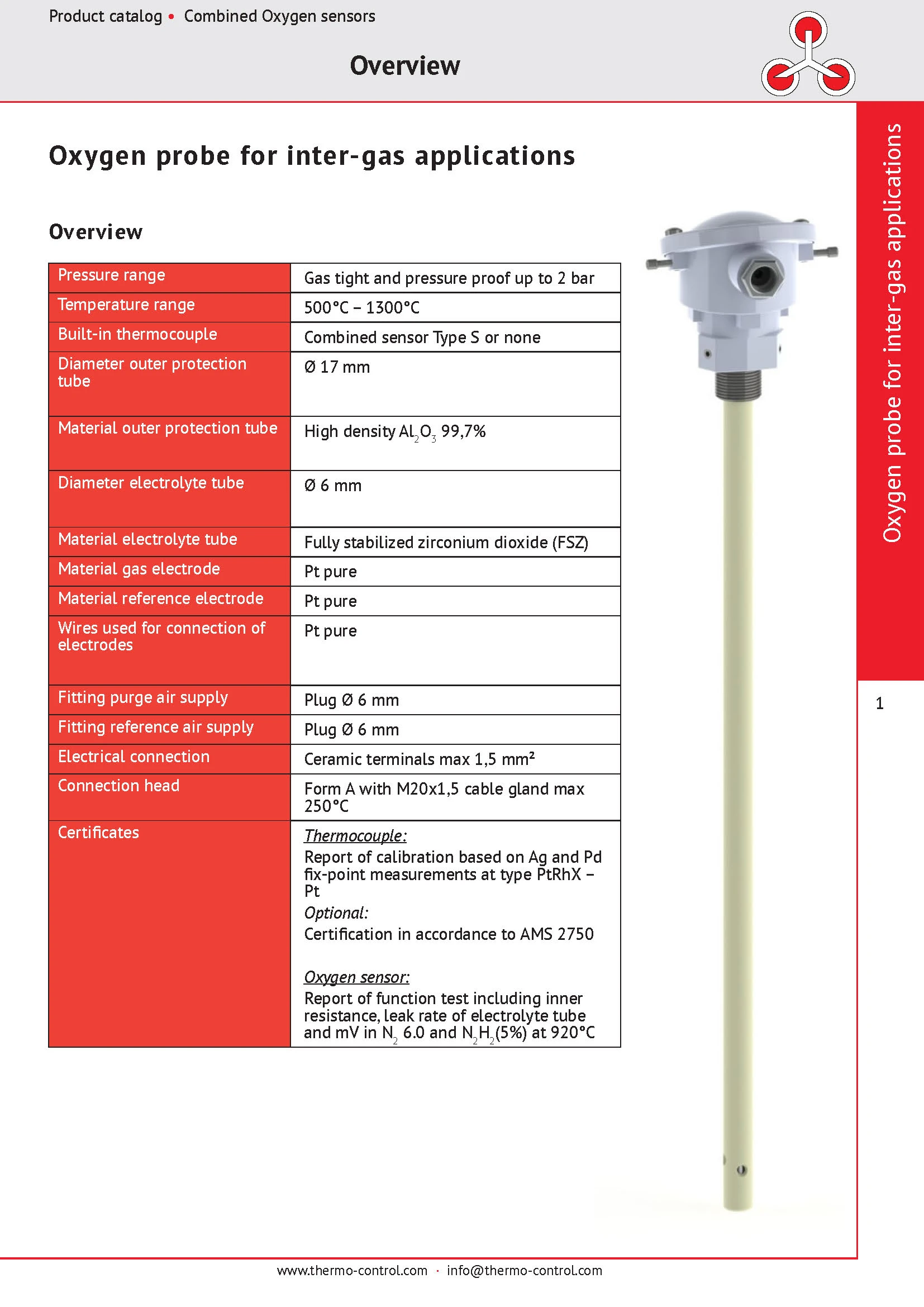

Atmospheric inert gas application
Pressure range 10-2 mbar to 2 bar

  • Built-in PtRh-Pt thermocouple with 4-year warranty
  • Temperature range from 500 °C to 1300 °C
  • Standard process connection via G3/4″ thread or Ø22×150 holding tube
  • Individual process connection possible according to specification
  • Gas-tight and pressure-resistant up to 2 bar
  • Including functional test certificate with test points at 940 °C with N2H2(5%)
  • Optional with calibration certificate according to AMS 2750 Optional
  • Optional with pre-assembled cables and plug connections
Choose your atmospheric inert gas variant

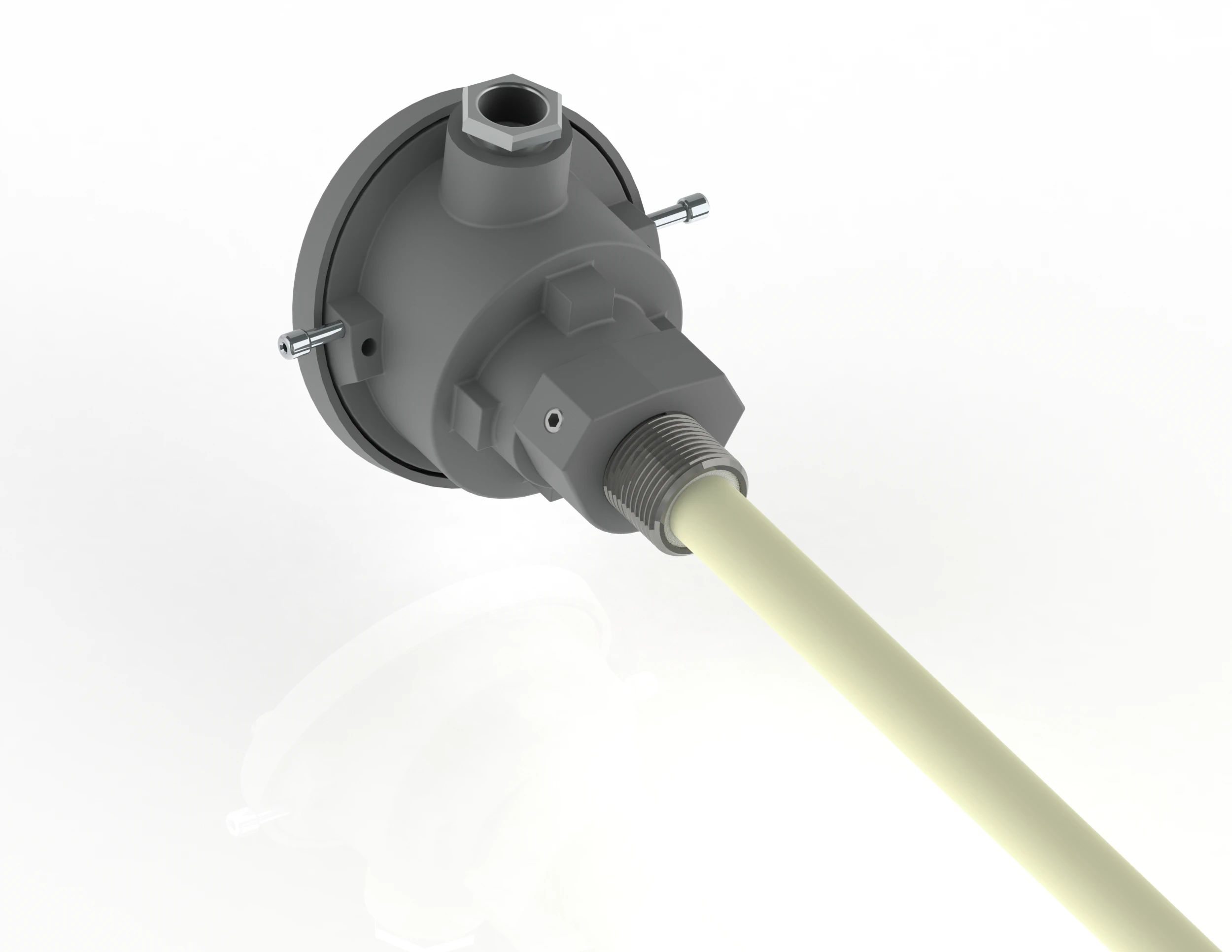

Protective gas oxygen probe with G3/4 inch process thread

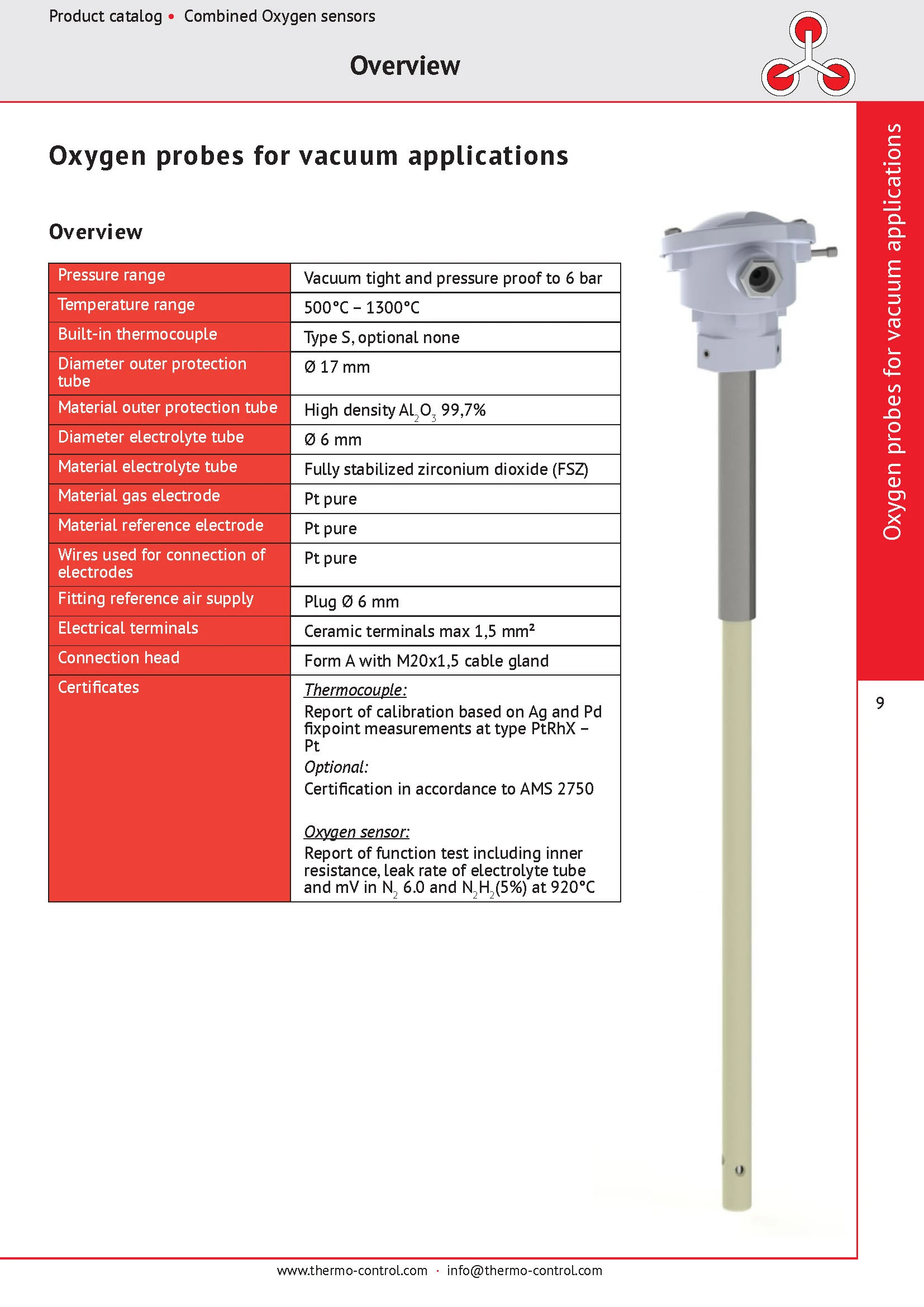

Low pressure / vacuum application
Pressure range 10-4 mbar to 5 bar

  • Built-in PtRh-Pt thermocouple with 4-year warranty
  • Temperature range from 500 °C to 1300 °C

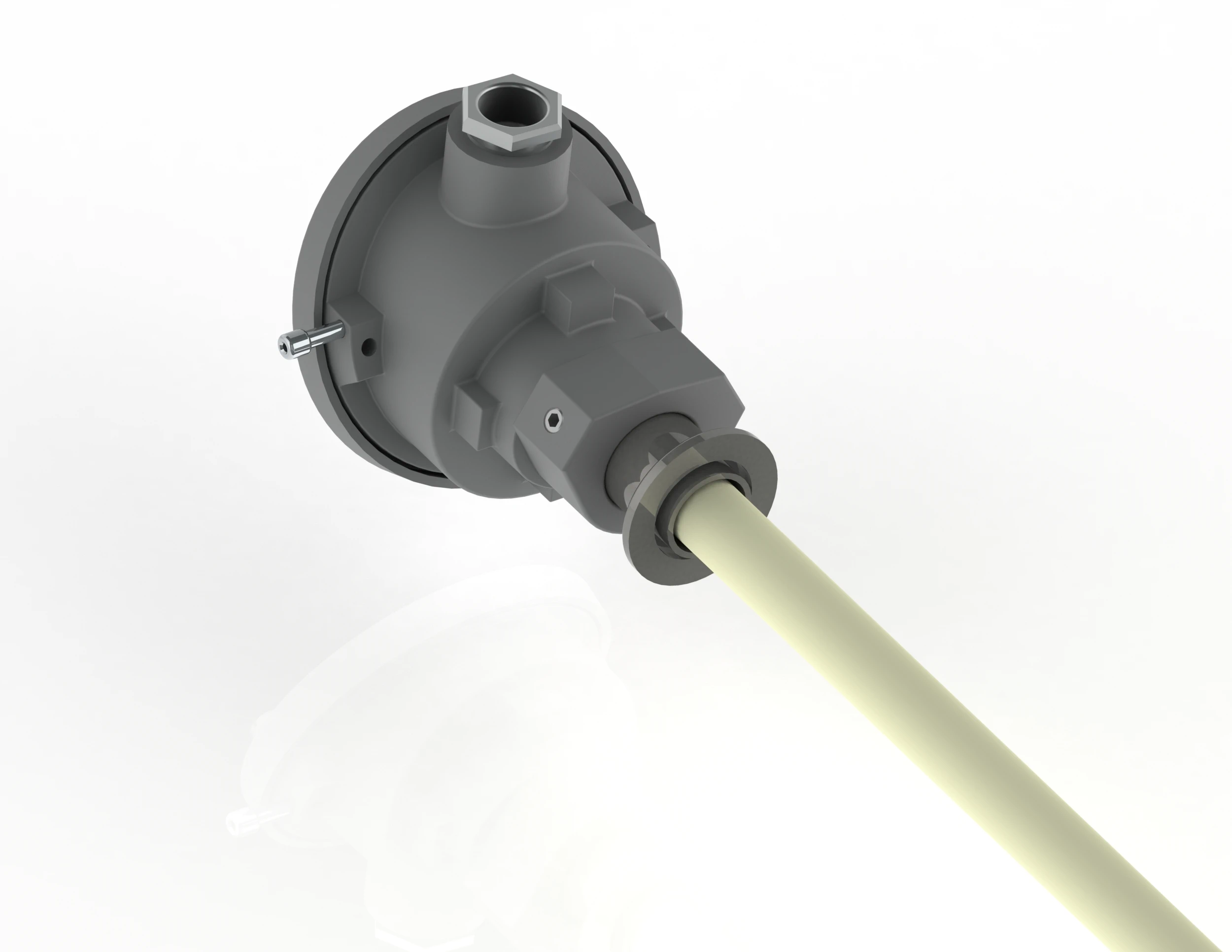

  • Standard process connection via ISO 2861 small flange DN 25 or Ø22×150 Holding tube
  • Individual process connection possible according to specification
  • Vacuum-tight and pressure-resistant up to 5 bar
  • Including functional test certificate with test points at 940 °C with N2H2(5 %)
  • Optional with calibration certificate according to AMS 2750 Optional
  • Optional with pre-assembled cables and plug connections
Choose your vacuum variant
Protective gas thermocouple with G3/4 inch process thread

Documents

thermo-control Körtvélyessy - General catalog oxygen probes General catalog oxygen probes 2.7 MB 2024
thermo-control Körtvélyessy - Catalog for inert gas oxygen probes Catalog for inert gas oxygen probes 571 kB 2024

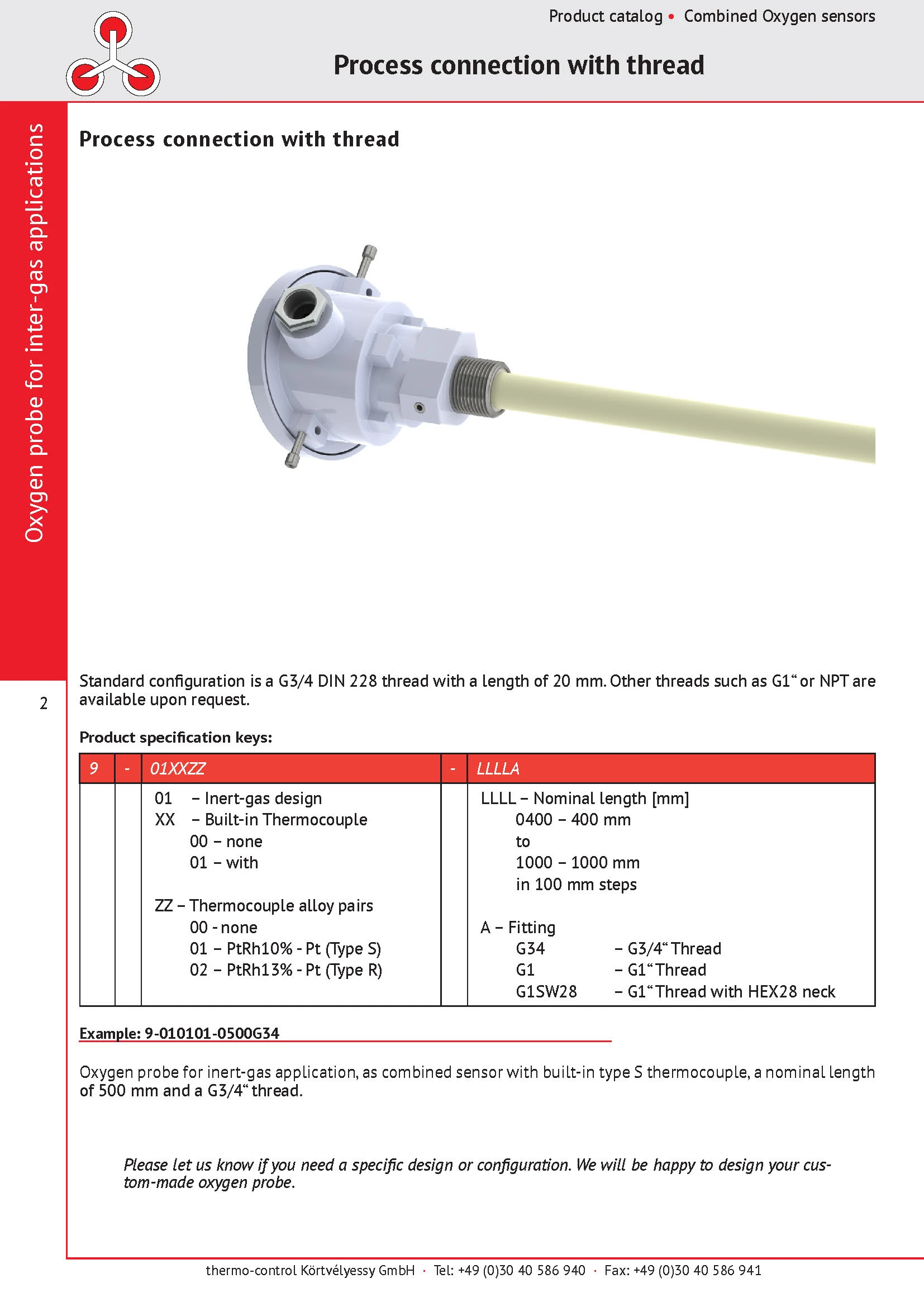

thermo-control Körtvélyessy - Catalog for inert gas oxygen probes threaded fitting Catalog for inert gas oxygen probes threaded fitting 378 kB 2024

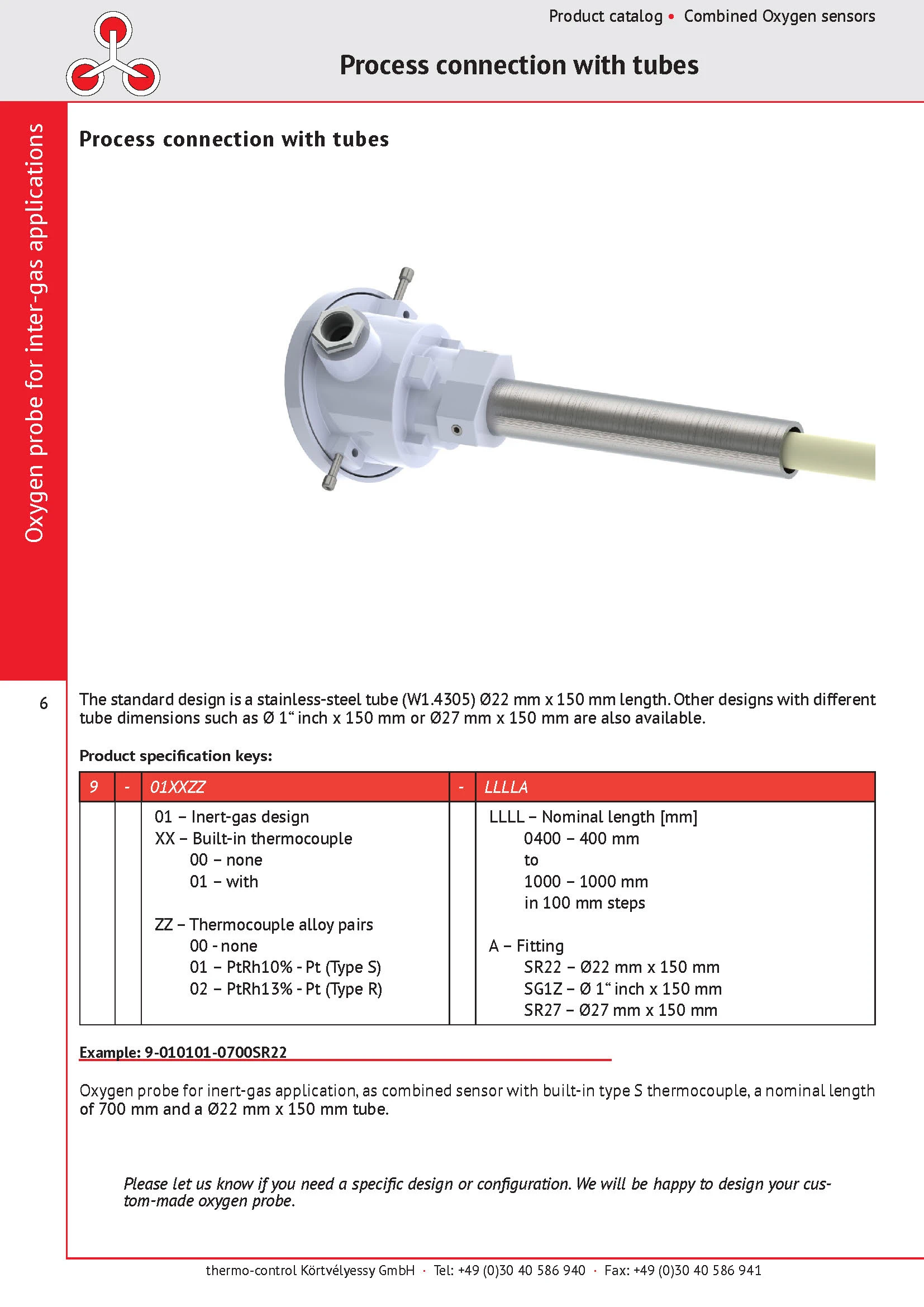

thermo-control Körtvélyessy - Catalog for inert gas oxygen probes mounting tubes Catalog for inert gas oxygen probes mounting tubes 367 kB 2024
thermo-control Körtvélyessy - Catalog for inert gas oxygen probes Catalog for inert gas oxygen probes 571 kB 2024

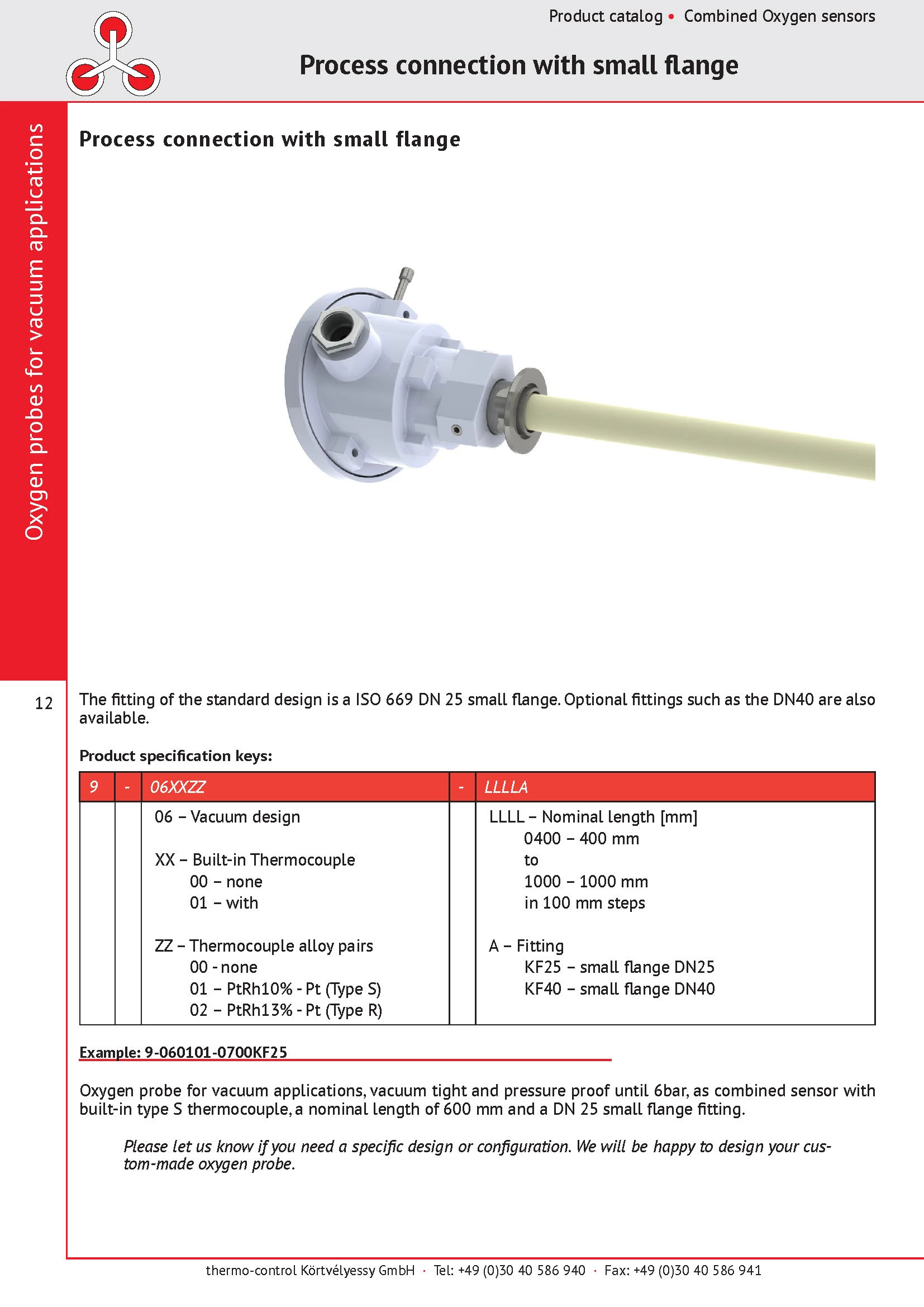

thermo-control Körtvélyessy - Catalog for vacuum oxygen probes with KF fitting Catalog for vacuum oxygen probes with KF fitting 571 kB 2024

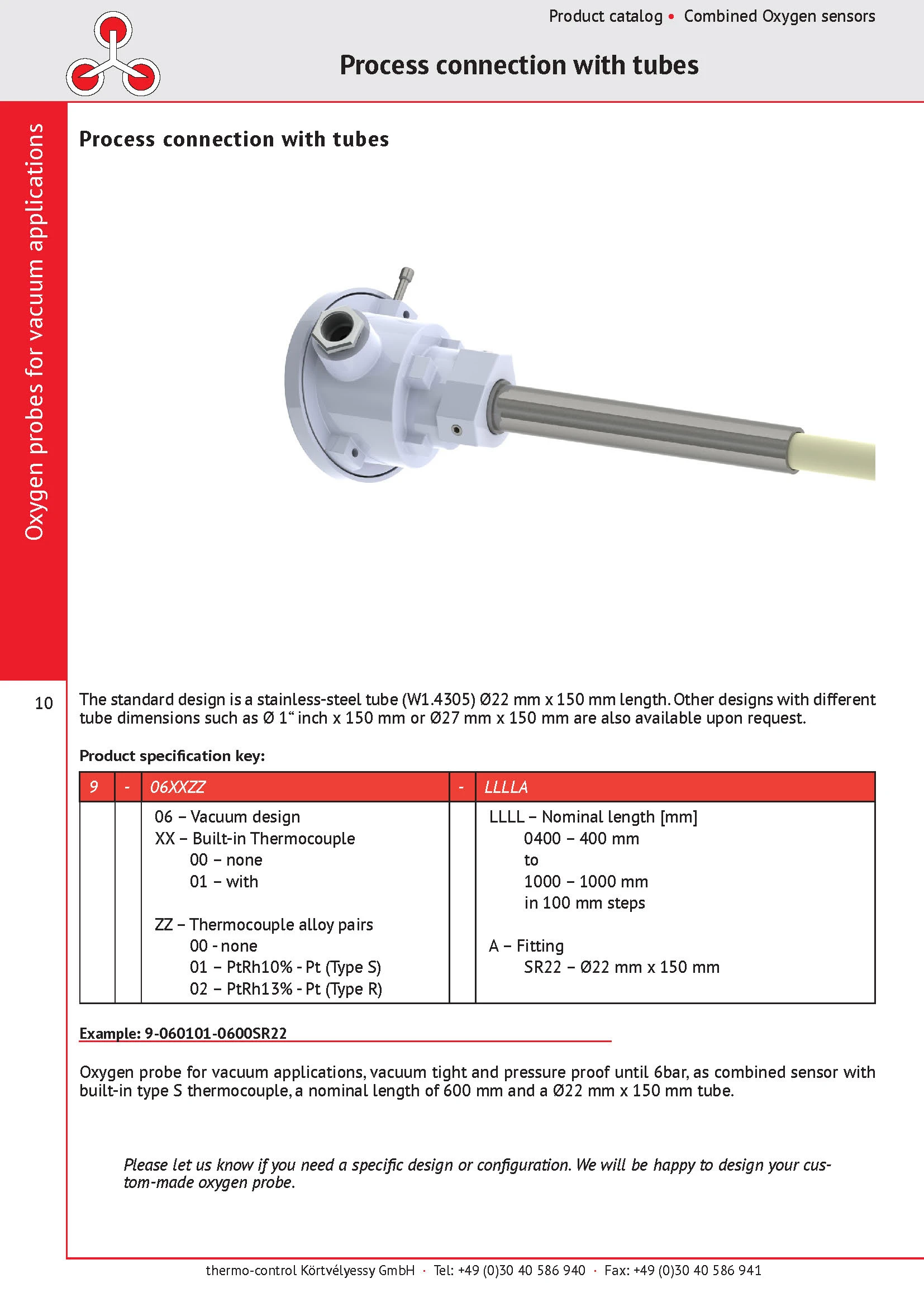

thermo-control Körtvélyessy - Catalog for vacuum oxygen probes with mounting tubes Catalog for vacuum oxygen probes with mounting tubes 571 kB 2024

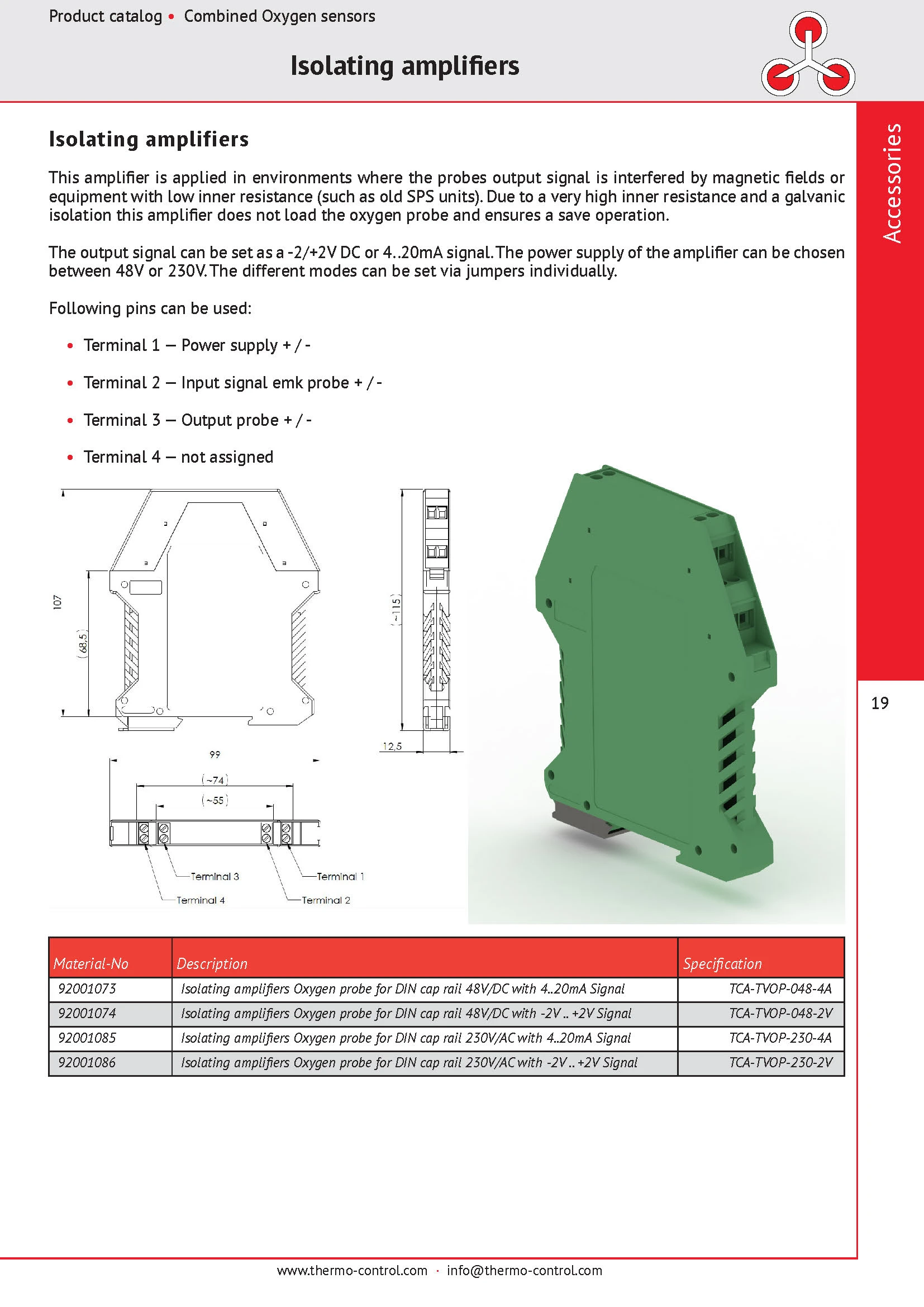

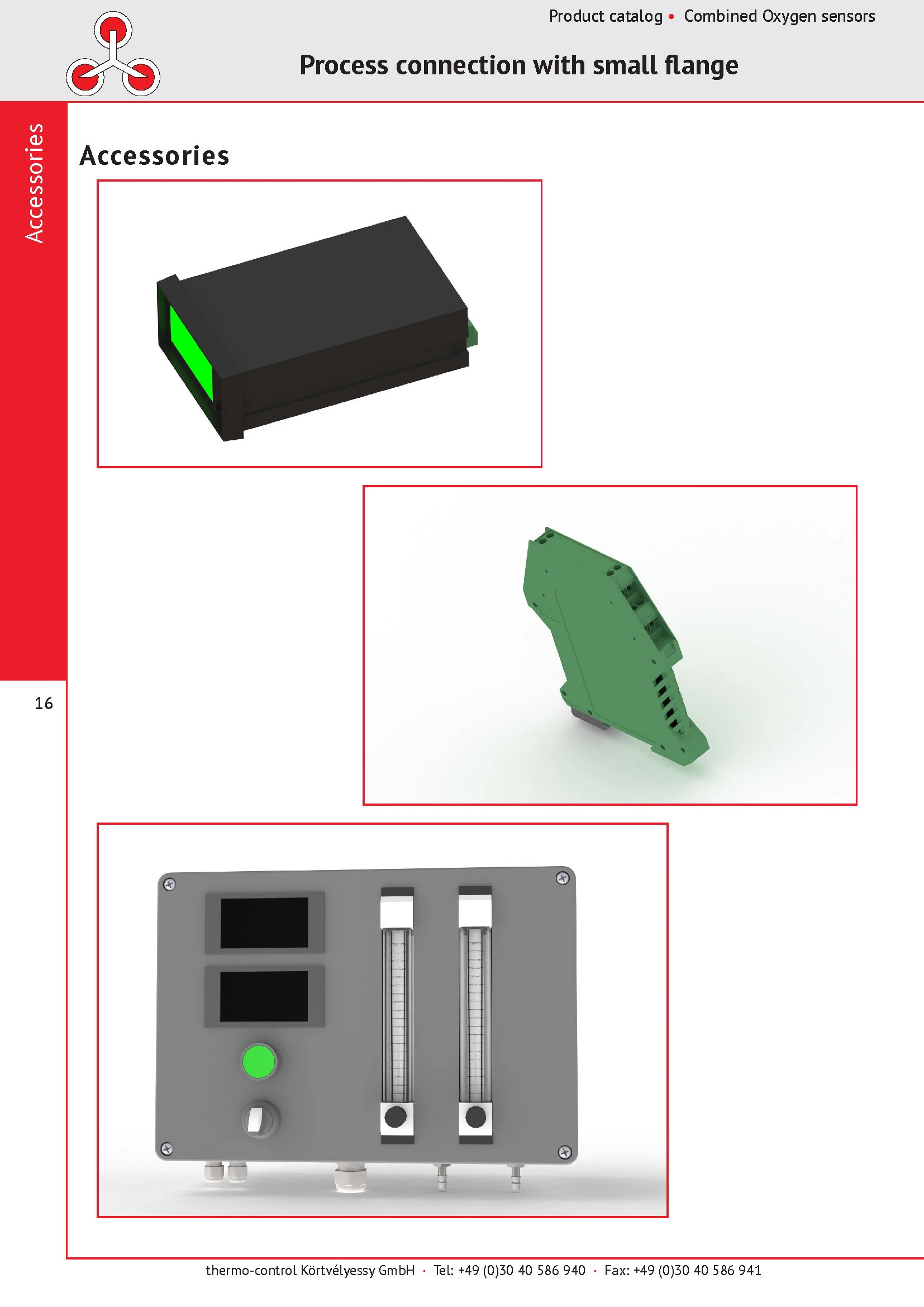

thermo-control Körtvélyessy - Oxygen Probes Accessories Oxygen Probes Accessories 1036 kB

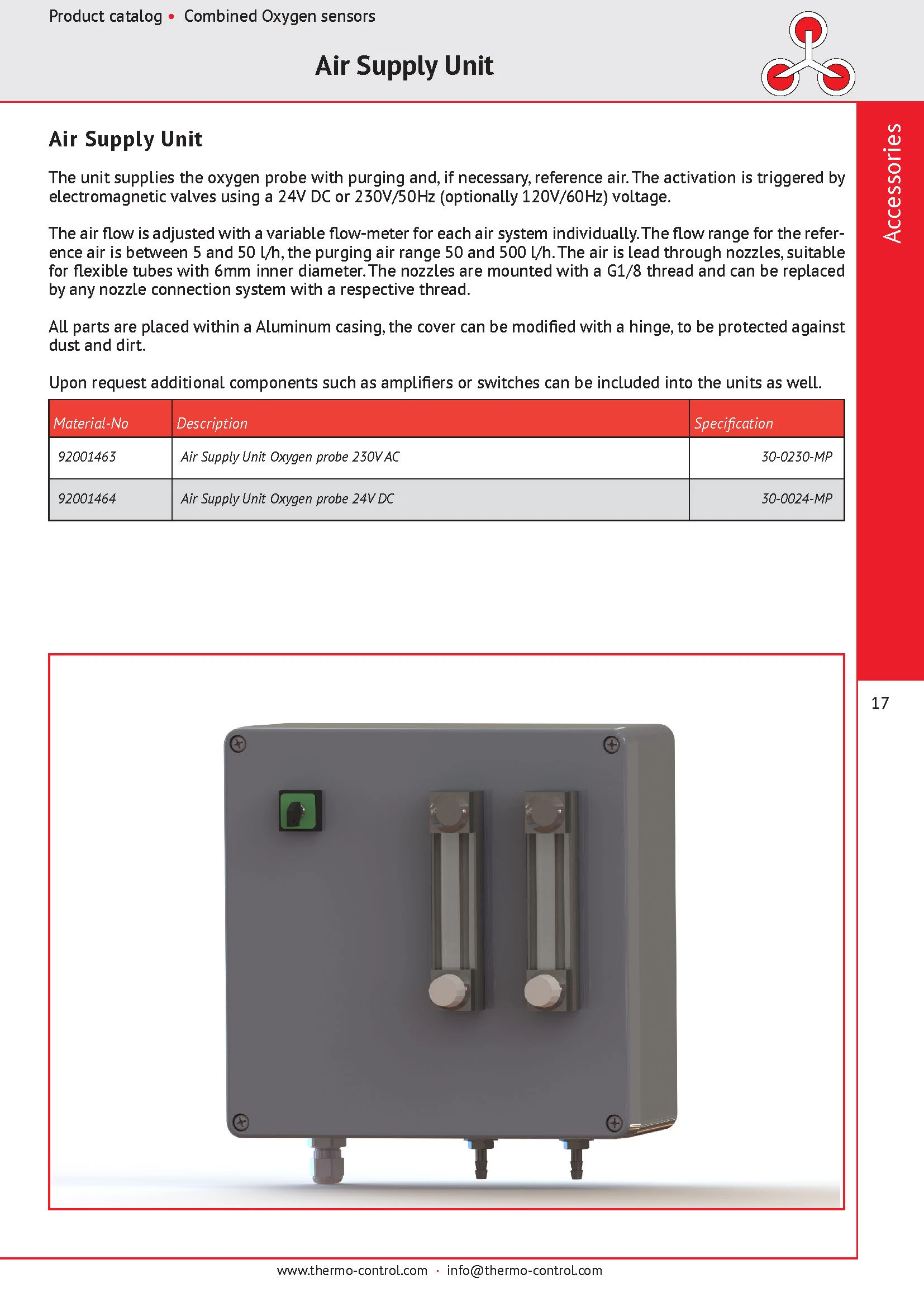

thermo-control Körtvélyessy - Oxygen Probes Accessories Oxygen Probes Accessories 288 kB
thermo-control Körtvélyessy - Oxygen Probes Accessories Oxygen Probes Accessories 426 kB

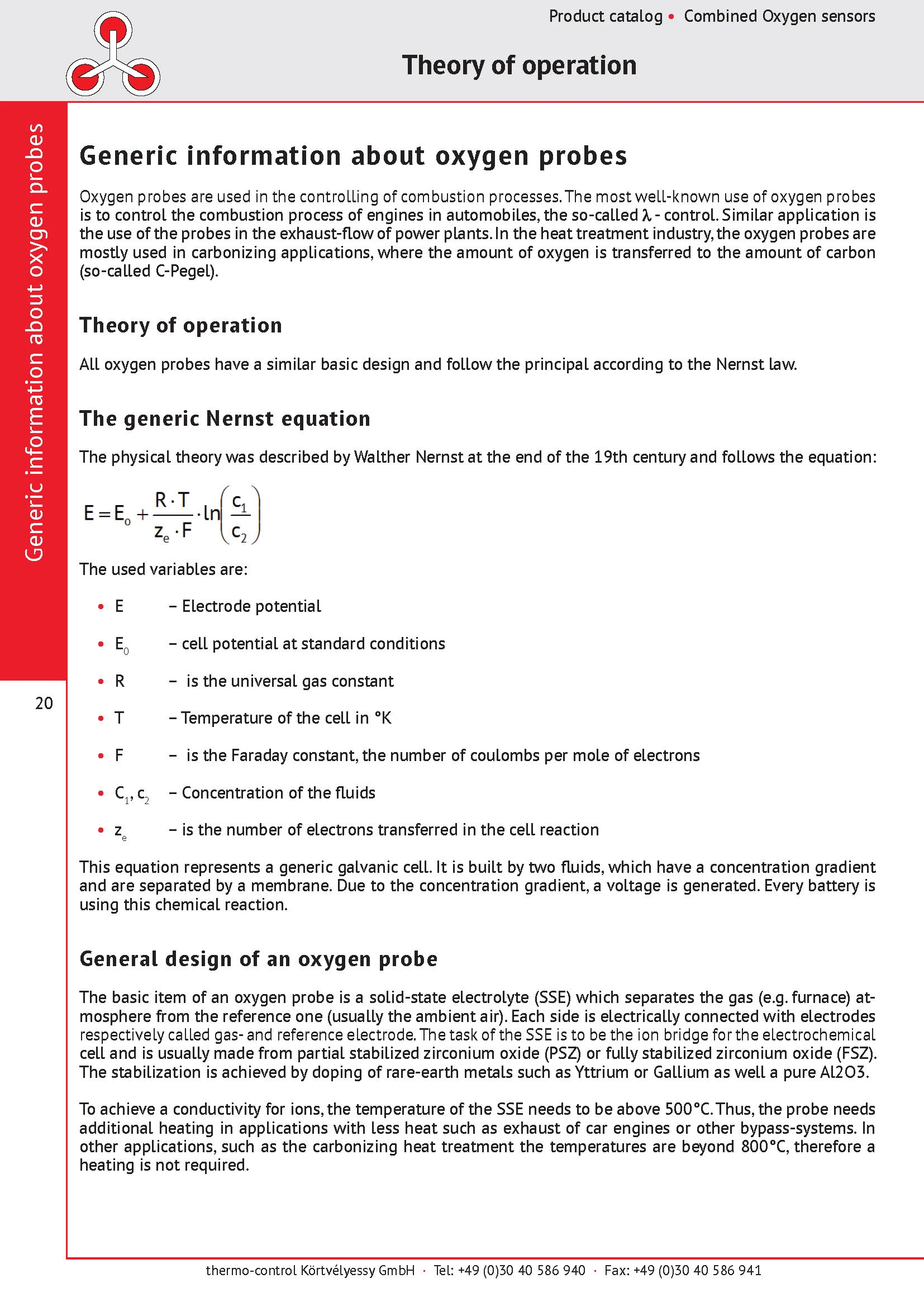

thermo-control Körtvélyessy - About oxygen probes About oxygen probes 264 kB
